CHQ-ADAPTOR

Hochiki Adaptor for New CHQ Modules

The CHQ-ADAPTOR is designed to allow the “Smart-Fix“ range of CHQ Modules to be housed in existing enclosures originally designed for the first generation CHQ-OEM Modules by modifying the ‘footprint’ of the unit.



Key Features:

  • Allows the PCB component of a CHQ Module to be housed in an enclosure
  • Footprint matches older enclosure sizes
CHQ-BOX-LIDWHT

Hochiki CHQ Module Box Lid (White)

Hochiki CHQ-BOX LID(WHT) CHQ Module Lid in White

An alternative lid for the CHQ Range of modules, manufactured in solid white ABS this lid can replace the semi-transparent black lid which is supplied as standard with the module.



Key Features:

  • Rugged design
  • Provides alternative lid option to the complete range of CHQ Modules
CHQ-DRC2-DINSCI

Hochiki Dual Relay Controller (DIN Enclosure with SCI)

Model CHQ-DRC2/DIN(SCI) is a Dual Relay Controller designed to provide two general-purpose relay outputs, each output can be driven separately for control of such devices as dampers or for control of plant and equipment shutdown.  The monitored input can be used for local power supply fault monitoring or as a general-purpose input.

The unit is also available as a boxed module version; both models feature an integral short-circuit isolator.  The CHQ-DRC2/DIN(SCI) utilises simple DIL switches for reliable addressing.



Key Features:

  • Loop powered
  • Single loop address
  • 2 Independently controlled changeover relays
  • Relays contact rated at 30 V dc at 1 A
  • Auxiliary monitored input
  • Boxed module version available
  • Both models feature an integral short-circuit isolator
  • Both models approved by LPCB
CHQ-DRC2SCI

Hochiki Dual Relay Controller with SCI

Dual Relay Controller with SCI

CHQ-DSC2SCI

Hochiki Dual Sounder Controller with SCI

Model CHQ-DSC2/M(SCI) is a Marine Approved Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQDSC2/M(SCI), increases the IP rating to IP65.

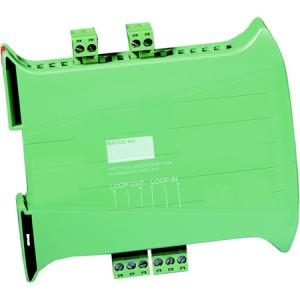

CHQ-DZM-DINSCI

Hochiki Dual Zone Monitor - DIN Enclosure with SCI

Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system.  The unit also features a Schottky Diode line continuity option, when used inconjunction with the optional LCMU.

Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM/DIN(SCI) at all times.  The unit utilises simple DIL switches for reliable addressing.  It is also available as a boxed module (CHQ-DZM(SCI)).  Both models feature an integral short-circuit isolator.

NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM/DIN(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.



Key Features:

  • Single loop address
  • Supports two independent zones of conventional detectors
  • Both zones fully monitored for short/open circuit
  • Requires an auxiliary 24 V dc supply
  • Also available as a boxed module
  • Both models feature an integral short-circuit isolator
  • Approved by LPCB
CHQ-PCM-DINSCI

Hochiki Analogue Plant Control Module

The CHQ-PCM/DIN(SCI) is a loop powered input/output module with four independent change-over relay outputs and four monitored inputs. The outputs feature N/O and N/C volt free contacts and can be driven separately under the control of the fire alarm panel, to be used for the control of devices such as dampers or for plant and equipment shutdown. The four inputs are provided for local fire and fault monitoring and these are fully monitored for open and short circuit, which if required, can be enabled or disabled in pairs using a two-way DIL switch. Note: The state of the relay contacts will be indeterminate until the unit is powered.



  • Single loop address
  • Loop powered
  • 4 change-over relay outputs
  • 4 independent inputs for monitoring of volt-free contacts
  • Each input can be configured to monitor either Normally Open or Normally Closed contacts
  • Boxed module version available
  • Both models feature an integral short-circuit isolator
  • Approved by LPCB

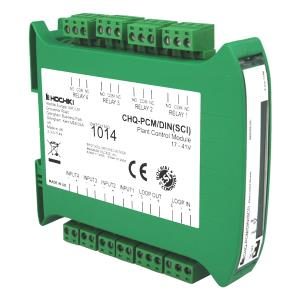

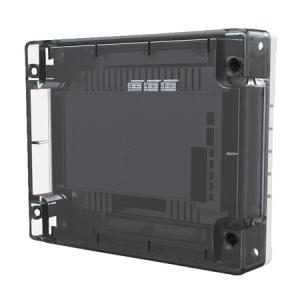

CHQ-PCMSCI

Hochiki Analogue Plant Control Module with SCI

The CHQ-PCM(SCI) is a loop powered input/output module with four independent change-over relay outputs and four monitored inputs.  The outputs feature N/O and N/C volt free contacts and can be driven separately under the control of the fire alarm panel, to be used for the control of devices such as dampers or for plant and equipment shutdown.  The four inputs are provided for local fire and fault monitoring and these are fully monitored for open and short circuit, which if required, can be enabled or disabled in pairs using a two-way DIL switch.

The unit is also available in a DIN Rail mountable enclosure – CHQ-PCM/DIN(SCI).  A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-PCM(SCI), increases the IP rating to IP65.  When using heavy cables we recommend the use of the SMB-1 Module Enclosure in conjunction with the SMB-ADAPTOR plate.



Key Features:

  • Single loop address
  • Loop powered
  • 4 change-over relay outputs
  • 4 independent inputs for monitoring of volt-free contacts
  • Each input can be configured to monitor either Normally Open or Normally Closed contacts
  • DIN rail version available
  • Both models feature an integral short-circuit isolator
  • Approved by LPCB

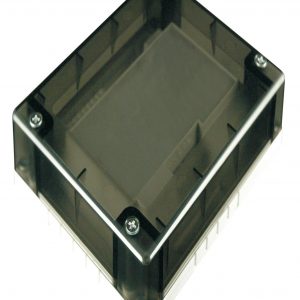

CHQ-SUB

Hochiki CHQ Box Sub Assembly

The CHQ-SUB Assembly is a set of replacement components designed to fit any of the existing CHQ Modules: CHQ-DIM(SCI), CHQ-SZM(SCI), CHQ-DZM(SCI), CHQ-DSC(SCI), CHQ-MRC(SCI), CHQ-DRC(SCI), CHQ-ISM and CHQ-PCM.

The sub-assembly consists of the PCB tray, PCB cover and semi-opaque lid and can be used in cases where existing module housing becomes damaged and needs replacement.



Key Features:

  • Robust design
  • Compatible with all CHQ Modules
  • Used to replace damaged components

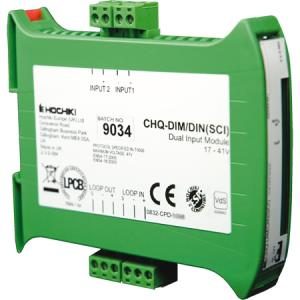

CHQ-DIM2-DINSCI

Hochiki Dual Input Module - DIN Enclosure with SCI

Model CHQ-DIM2/DIN(SCI) is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment.  Also available as a boxed module; both models feature an integral short-circuit isolator.



Key Features:

  • Single Loop Address
  • Loop Powered
  • 2 Independent Inputs for Monitoring of Volt Free Contacts
  • Each Input can be configured to monitor either Normally Open or Normally Closed contacts
  • Boxed module version available
  • Both models feature an integral SCI
  • Both models approved by LPCB

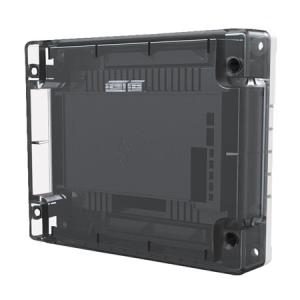

CHQ-DIM2SCI

Hochiki Dual Input Module with SCI

Model CHQ-DIM2(SCI) is a Dual Input Module designed to interface to a variety of inputs such as door contacts, sprinkler flow/door switches and plant equipment. Also available as a DIN Rail mountable version; both models feature an integral short-circuit isolator.

A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-DIM2(SCI), increases the IP rating to IP65.

160701-O-ZZ999-001

Hochiki Dual Sounder Controller - DIN Enclosure with SCI

Model CHQ-DSC2/DIN(SCI) is a Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilises simple DIL switches for reliable addressing.

Key Features

  • Single loop address
  • Two independent sounder circuits
  • Each circuit fully monitored for open and short circuit faults
  • Each alarm circuit fused at 1 A
  • Auxiliary monitored input
  • Outputs are synchronised and can be driven continuously or intermittently
  • 24 Vdc auxiliary power required
  • Boxed module version available
  • Both models feature an integral short-circuit isolator
  • Both models approved by LPCB & VdS

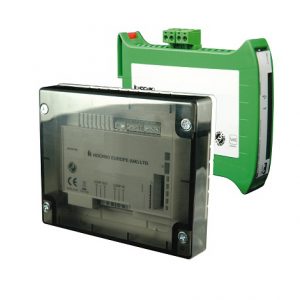

CHQ-DZMSCI

Hochiki Dual Zone Monitor (w/ SCI)

Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system.  The unit also features a Schottky Diode line continuity option, when used inconjunction with the optional LCMU.

Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM/DIN(SCI) at all times.  The unit utilises simple DIL switches for reliable addressing.  It is also available as a boxed module (CHQ-DZM(SCI)).  Both models feature an integral short-circuit isolator.

NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM/DIN(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.



Key Features:

  • Single loop address
  • Supports two independent zones of conventional detectors
  • Both zones fully monitored for short/open circuit
  • Requires an auxiliary 24 V dc supply
  • Also available as a boxed module
  • Both models feature an integral short-circuit isolator
  • Approved by LPCB
CHQ-ISM

Hochiki Intrincially Safe Compatible Sounder Module

This Sounder Control Module interfaces between the Hochiki Analogue system via a CHQ-DSC or conventional sounder O/P’s and the intrinsically safe sounder/beacon units via an intrinsically safe barrier.

The module provides line monitoring for open or short circuits on the wiring connected to both the safe and hazardous areas.



Key Features:

  • Provides dual sounder circuits
  • Provides fault-monitored input
  • Interfaces between loop and I.S. sounders/beacons
  • Fully monitored for short-circuits
  • Requires 24 V dc external power supply

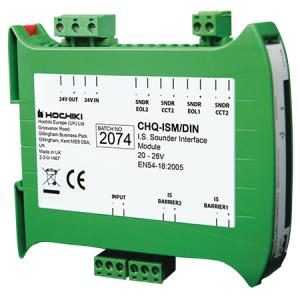

CHQ-ISM-DIN

Hochiki Intrincially Safe Sounder Interface Module

This Sounder Control Module interfaces between the Hochiki Analogue system via a CHQ-DSC or conventional sounder O/P’s and the intrinsically safe sounder/beacon units via an intrinsically safe barrier.

The module provides line monitoring for open or short circuits on the wiring connected to both the safe and hazardous areas.



Key Features:

  • Provides dual sounder circuits
  • Provides fault-monitored input
  • Interfaces between loop and I.S. sounders/beacons
  • Fully monitored for short-circuits
  • Requires 24 V dc external power supply

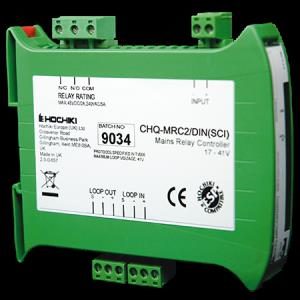

CHQ-MRC2-DINSCI

Hochiki Mains Relay Controller DIN Enclosure with SCI

Model CHQ-MRC/DIN(SCI) is a Single Input/Output Module, which provides a single, mains-rated relay output  for the control of such devices as dampers, extractors or plant and equipment shutdown.  The monitored input can be used for local power supply fault monitoring or as a general-purpose input.

The unit is supplied as a DIN Rail mountable version but is also available as a boxed module.  Both models feature an integral short-circuit isolator.  The CHQ-MRC/DIN(SCI) utilises simple DIL switches for reliable addressing.



Key Features:

  • Loop powered
  • Single loop address
  • Single mains rated relay contact
  • Relay Contact Rated at 250 V ac @ 5 A (resistive load only) & 48 V dc @ 2 A (resistive load only)
  • Auxiliary monitored input
  • DIN rail version available
  • Both models feature an integral short-circuit isolator
