Hochiki Intelligent Devices

CHQ-ADAPTOR

Hochiki Adaptor for New CHQ Modules

The CHQ-ADAPTOR is designed to allow the “Smart-Fix“ range of CHQ Modules to be housed in existing enclosures originally designed for the first generation CHQ-OEM Modules by modifying the ‘footprint’ of the unit.



Key Features:

  • Allows the PCB component of a CHQ Module to be housed in an enclosure
  • Footprint matches older enclosure sizes
YBO-BSBLK

Hochiki Base Sounder – Black case

Model YBO-BS(BLK) is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).



Key Features

  • Loop Powered with Single Loop Address – addressed automatically by Control Panel or via the TCH-B200 Hand Held Programmer
  • Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
  • 51 User-Selectable Tones (all tones EN54-3 compatible)
  • Auto-Shutdown feature prevents noise-pollution
YBO-BSB2WHT-RL

Hochiki Base Sounder Beacon – White case, red LEDs

Model YBO-BSB2(WHT)/RL is an O Rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3(WHT)) or the Isolator Base (YBN-R/3(WHT)-SCI) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.

The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP2(WHT)). The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element. Sounder and Beacon elements can be operated independently from each other.



Key Features:

  • EN54-23 compliant
  • O Rated
  • Single Loop Address – addressed via the TCH-B100 Hand Held Programmer
  • Variable Sound Output 50 ~ 98 dB(A) (2 dB(A)) output at 1 metre
  • Sounder and Beacon can operate independently
  • 0.5 or 1Hz flash frequency
  • Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
  • 51 User-Selectable Tones (all tones EN54-3 compatible)
  • Auto-Shutdown feature prevents noise-pollution
  • Also available in ivory or black
CHQ-CB-RL

Hochiki Ceiling Beacon – Ivory case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CB-WL-15

Hochiki Ceiling Beacon – Ivory case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CB-WL

Hochiki Ceiling Beacon – Ivory case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBRED-RL

Hochiki Ceiling Beacon – Red case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

Hochiki Ceiling Beacon – Red case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CB(RED0RL-300x300

Hochiki Ceiling Beacon – Red case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBWHT-RL

Hochiki Ceiling Beacon – White case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBWHT-WL-15

Hochiki Ceiling Beacon – White case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBWHT-WL

Hochiki Ceiling Beacon – White case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

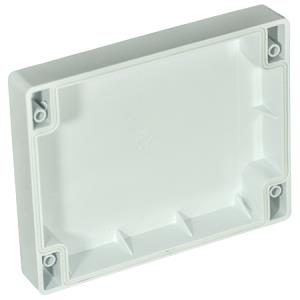

CHQ-BOX-LIDWHT

Hochiki CHQ Module Box Lid (White)

Hochiki CHQ-BOX LID(WHT) CHQ Module Lid in White

An alternative lid for the CHQ Range of modules, manufactured in solid white ABS this lid can replace the semi-transparent black lid which is supplied as standard with the module.



Key Features:

  • Rugged design
  • Provides alternative lid option to the complete range of CHQ Modules

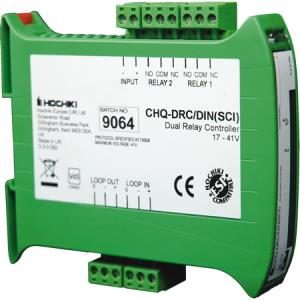

CHQ-DRC2-DINSCI

Hochiki Dual Relay Controller (DIN Enclosure with SCI)

Model CHQ-DRC2/DIN(SCI) is a Dual Relay Controller designed to provide two general-purpose relay outputs, each output can be driven separately for control of such devices as dampers or for control of plant and equipment shutdown.  The monitored input can be used for local power supply fault monitoring or as a general-purpose input.

The unit is also available as a boxed module version; both models feature an integral short-circuit isolator.  The CHQ-DRC2/DIN(SCI) utilises simple DIL switches for reliable addressing.



Key Features:

  • Loop powered
  • Single loop address
  • 2 Independently controlled changeover relays
  • Relays contact rated at 30 V dc at 1 A
  • Auxiliary monitored input
  • Boxed module version available
  • Both models feature an integral short-circuit isolator
  • Both models approved by LPCB

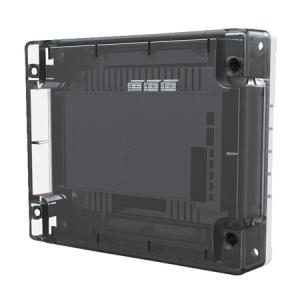

CHQ-DRC2SCI

Hochiki Dual Relay Controller with SCI

Dual Relay Controller with SCI

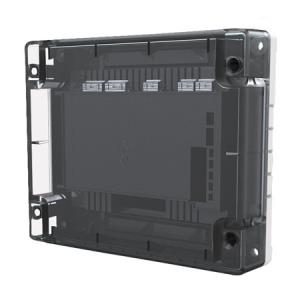

CHQ-DSC2SCI

Hochiki Dual Sounder Controller with SCI

Model CHQ-DSC2/M(SCI) is a Marine Approved Dual Sounder Controller, which has been designed to provide two sounder outputs (that can be driven separately) with full fault monitoring. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The unit utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQDSC2/M(SCI), increases the IP rating to IP65.
