Hochiki Mains Relay Controller with SCI

Part Number CHQ-MRC2(SCI) Categories , , ,

Talk to our specialists

Description

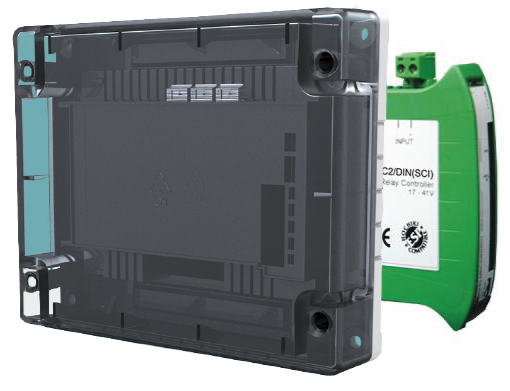

Model CHQ-MRC2(SCI) is a mains relay controller providing a single mains rated relay output for the control of such devices as dampers, extractors or plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input. The mains relay controller is also available as a DIN Rail mountable version. Both models feature an integral short-circuit isolator.



Key Features:

  • Loop-powered
  • Single loop address
  • Single mains rated relay contact
  • Relay contact rated at 250 Vac @ 5 A (resistive load only) & 48Vdc @ 2 A (resistive load only)
  • Auxiliary monitored input
  • DIN rail version available
  • Both models feature an integral short-circuit isolator
  • Both models approved by LPCB
100-2039V

EURV-SBR-IP65 Intelligent AV Wall Mounted Sounder Beacon

Available in red (100-2039V) or white (100-2039VW). The unit has a built in microphone which allows the unit to indicate a fault should the sounder not operate when activated or tested.

EVAC-RES-ISO

Dual Residential Isolator Module

The dual residential isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

EVAC-FLR-ISO

Single Floor Isolator Module

The single floor isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

100-2034V

EURV-OM-RM Single Relay Output Mini Module

The single output module (100-2034V) is loop-powered, designed around a fully digital protocol and provides a fast and secure response. The output channel is monitored and detects open and short circuit conditions. Connections are made using plug-in terminal blocks.
