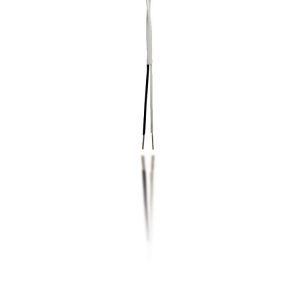

Linear Heat Cable

[PremiumWh]-LHD240

Linear Heat Detection (LHD) - 240°C, 464°F Nominal

The technology behind the digital Linear Heat Detection (LHD) cable, makes it suitable for difficult and challenging applications where other technologies struggle to work.

The cable is easy to install and maintain. It also provides a cost effective solution where project expenditure requires this to be kept at a minumum.

The sensing cable is created from a pair of twisted steel conductors, each with their own temperature sensitive insulation. This then has an overall Fluropolymer outer sleeve. When the temperature sensitive insulation reaches it’s predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The cable can be connected to any unit capable of monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

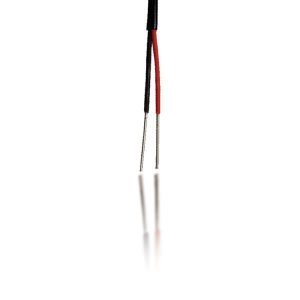

[PremiumWh]-LHD

Linear Heat Detection (LHD) - 85°C, 185°F Nominal

The simple and proven technology of digital Linear Heat Detecting cables (LHD), makes it a product of choice for difficult and challenging applications where other technologies struggle to work.

With it’s ease of installation and low maintenance it also provides a cost effective solution where project expenditure requires to be kept at a minimum.

The sensing cable is formed from a pair of twisted steel conductors each with temperature sensitive insulation and then an overall Nylon outer sleeve. When the temperature sensitive insulation reaches it’s predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The cable can be connected to any unit capable of monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

The nylon outer sleeve of the H8045N offers good chemical and water resistance, allowing it to be deployed in harsh and dirty environments.

[PremiumWh]-LHD

Linesense (LHD) - 105°C, 221°F Nominal

The technology behind the digital Linear Heat Detection (LHD) cable, makes it a product of choice for difficult and challenging applications where other technologies may struggle.

It is easy to install and requires low maintenance therefore providing a cost effective solution where project expenditure requires to be kept at a minumum.

The sensing cable is created from a pair of twisted steel conductors, with temperature sensitive insulation. And an overal PVC outer sleeve. When the temperature sensitive insulation reaches it’s predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The LHD cable can be connected to any unit monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

[PremiumWh]-LHD

Linesense (LHD) - 176°C 349°F Nominal

The digital Linear Heat Detection Cable uses simple and proven technology. Making it a product of choice for difficult and challenging applications where other technologies struggle to work.

It is easy to install and requires low maintenance, therefore providing a cost effective solution where project expenditure requires to be kept at a minumum.

The sensing cable is created from a pair of twisted steel conductors each with temperature sensitive insulation and then an overall PVC outer sleeve. When the temperature sensitive insulation reaches it’s predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The cable can be connected to any unit capable of monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

[PremiumWh]-LHD

Linesense (LHD) - 68°C, 155°F Nominal

The simple and proven technology of digital Linear Heat Detection (LHD) cable, makes it a product of choice for difficult and challenging applications where other technologies struggle to work.

With it’s ease of installation and low maintenance it also provides a cost effective solution where project expenditure requires to be kept at a minimum.

The sensing cable is formed from a pair of twisted steel conductors each with temperature sensitive insulation and then an overall Nylon outer sleeve. When the temperature sensitive insulation reaches it’s predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The cable can be connected to any unit capable of monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

The nylon outer sleeve of the H8040N offers good chemical and water resistance, allowing it to be deployed in harsh and dirty environments.

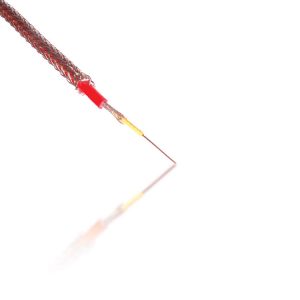

[PremiumWh]-Signaline

Signaline HD-S Analogue Heat Sensing Cable Stainless Steel Braided

Signaline HD is an analogue resettable linear heat detector that monitors significant increases in temperature. An electronic controller connected to the cable monitors the condition of the cable to sense any change in temperature by continually measuring the electrical resistance between the metallic core and screen. If the change in temperature is sufficient the controller creates an alarm.
