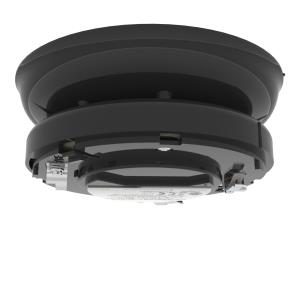

YBO-BSBLK

Hochiki Base Sounder - Black case

Model YBO-BS(BLK) is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution (dependant on control panel compatibility).



Key Features

  • Loop Powered with Single Loop Address – addressed automatically by Control Panel or via the TCH-B200 Hand Held Programmer
  • Variable Sound Output 50 ~ 98 dB(A) (+/-2 dB(A)) output at 1 metre
  • 51 User-Selectable Tones (all tones EN54-3 compatible)
  • Auto-Shutdown feature prevents noise-pollution

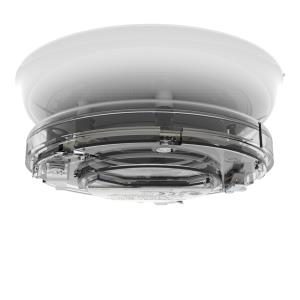

YBO-BSB2WHT-RL

Hochiki Base Sounder Beacon - White case, red LEDs

Model YBO-BSB2(WHT)/RL is an O Rated EN54-23 compliant addressable loop powered Base Sounder with integral Beacon, innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBN-R/3(WHT)) or the Isolator Base (YBN-R/3(WHT)-SCI) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators.

The unit can also be converted into a wall sounder beacon with the simple addition of a Cap (SI/CAP2(WHT)). The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder or beacon will operate, before automatically shutting down, cutting noise pollution in the case of the sounder element. Sounder and Beacon elements can be operated independently from each other.



Key Features:

  • EN54-23 compliant
  • O Rated
  • Single Loop Address – addressed via the TCH-B100 Hand Held Programmer
  • Variable Sound Output 50 ~ 98 dB(A) (2 dB(A)) output at 1 metre
  • Sounder and Beacon can operate independently
  • 0.5 or 1Hz flash frequency
  • Fits Hochiki Standard or Isolator Base and supports ESP Sensors, Addressable Beacons and Addressable Remote Indicator
  • 51 User-Selectable Tones (all tones EN54-3 compatible)
  • Auto-Shutdown feature prevents noise-pollution
  • Also available in ivory or black
CHQ-CB-RL

Hochiki Ceiling Beacon - Ivory case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

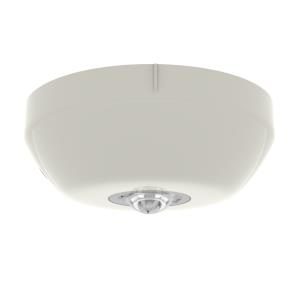

CHQ-CB-WL-15

Hochiki Ceiling Beacon - Ivory case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CB-WL

Hochiki Ceiling Beacon - Ivory case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

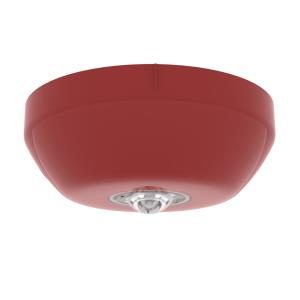

CHQ-CBRED-RL

Hochiki Ceiling Beacon - Red case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

160701-O-ZZ999-001

Hochiki Ceiling Beacon - Red case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

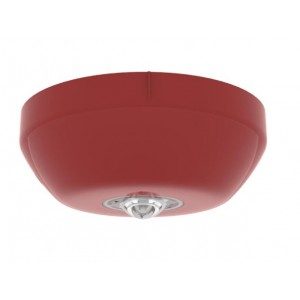

CHQ-CB(RED0RL-300x300

Hochiki Ceiling Beacon - Red case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBWHT-RL

Hochiki Ceiling Beacon - White case, red LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

CHQ-CBWHT-WL-15

Hochiki Ceiling Beacon - White case, white LEDs (15m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

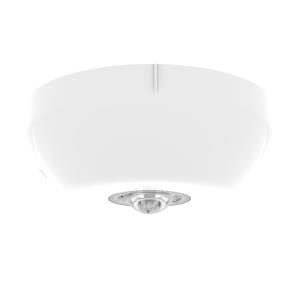

CHQ-CBWHT-WL

Hochiki Ceiling Beacon - White case, white LEDs (7.5m)

An addressable loop-powered beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m, 10m and 15m*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

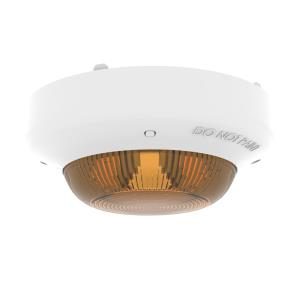

CHQ-ABAMBWHT

Hochiki Addressable Addressable Loop Powered Beacon (White Case, Amber Lens) - non EN54-23 compliant

The CHQ-AB range consists of addressable loop-powered Beacons, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casings exactly match the Hochiki ESP Sensor range in shape and colour providing seamless integration. The units can be used on the Standard ESP Base (YBN-R/3), the Base Sounders (CHQBS or YBO-BS), the Base Sounder Beacon (YBO-BSB) or the Short-Circuit Isolator Base (YBO-R/SCI).



High Intensity LED technology

  • Variable flash frequency
  • Addressable via Hand Held Programmer (TCH-B200)
  • Up to 127 devices per loop
  • Approved by VdS

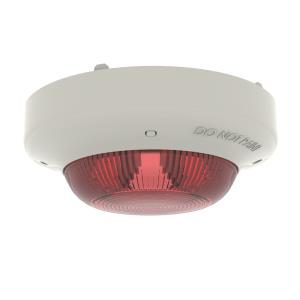

CHQ-AB

Hochiki Addressable Beacon - Ivory case, red lens (non EN54-23 compliant)

The CHQ-AB range consists of addressable loop-powered Beacons, which are fully compatible with Hochiki’s ESP Range of Bases.

The Beacons have the ability to be turned on very quickly using a group command and are synchronised to flash at the same time.  The innovative high-intensity LEDs and lens design produces a highly visible flash whilst the casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration.  Lenses are available in red (CHQ-AB(RED)), amber (CHQ-AB(AMB)) or blue (CHQ-AB(BLU)).

Can be used on Standard ESP Base (YBN-R/3), Base Sounder (CHQ-BS) or the Short-Circuit Isolator Base (YBO-R/SCI).



Features

  • High Intensity LED technology
  • 1Hz flash frequency
  • Addressable via Hand Held Programmer (TCH-B100)
  • Up to 127 devices per loop
  • Low current consumption
  • Available in 3 lens colours
  • Approved by VdS

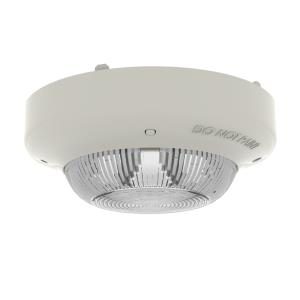

CHQ-ARI

Hochiki Addressable Remote Indicator - Ivory case, clear lens (non EN54-23 compliant)

Addressable Remote Indicator – Ivory case, clear lens (non EN54-23 compliant)

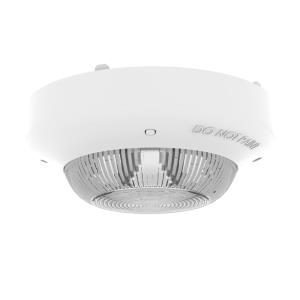

CHQ-ARIWHT

Hochiki Addressable Remote Indicator (White Case, Clear Lens) - non EN54-23 compliant

The CHQ-ARI(WHT) is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal.

The casing exactly matches the Hochiki white ESP sensor range in shape and colour providing seamless integration.

The unit can be used on the standard white ESP base (YBN-R/3(WHT)), the white base sounder (YBO-BS(WHT)), the white base sounder beacon (YBO-BSB(WHT)) or the white short-circuit isolator base (YBO-R/SCI(WHT)).



Key Features:

  • High Intensity LED technology
  • Addressable via Hand Held Programmer (TCH-B100)
  • Up to 127 devices per loop
  • Approved by VdS

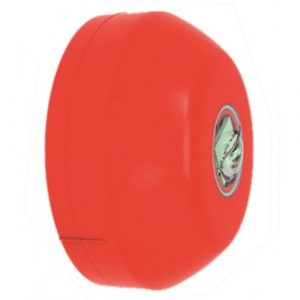

CHQ-WB(RED)WL

Hochiki Addressable Wall Beacon (Red Body Red LEDs)

The CHQ-WB(RED)/RL is an Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m. The unit is designed to fit the YBO-R/3(RED) and YBO-R/SCI(RED) bases. This model features a red case and red LEDs.



Key Features:

  • EN54-23 compliant
  • Loop powered
  • High intensity flash
  • Range of coverage volumes
  • Red LEDs
  • Colour-matched with existing sensor range
