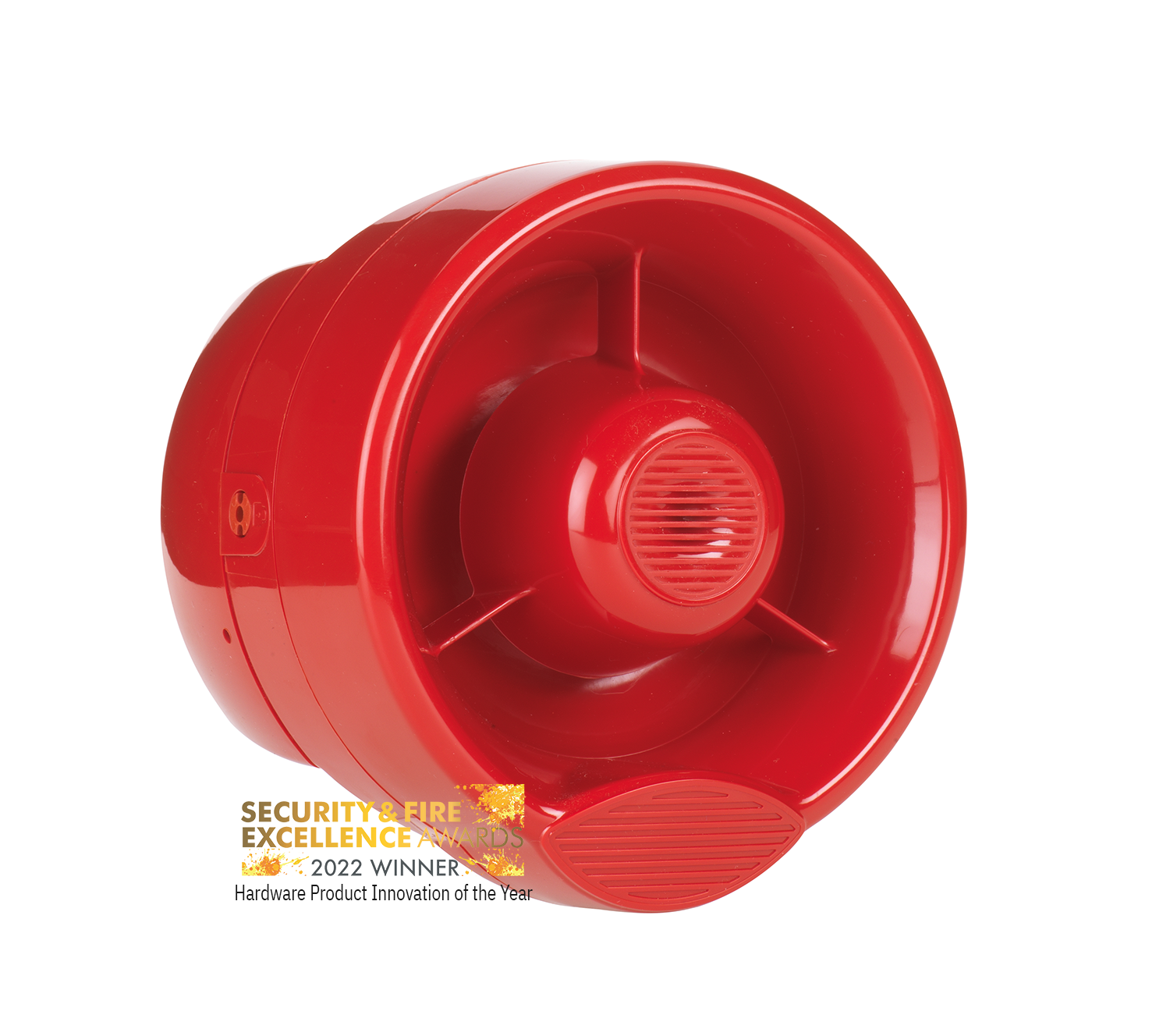

Sygno-fi Sounder – Wall Mounted

Part Number SYG-WSR -

Talk to our specialists

Description

The Sygno-fi Sounder combines the Sygno-fi SYG-SIM Wall Sounder Module with the 100-3801V Conventional Wall Sounder (each sold separately).

Additional information

Further Description

The Sygno-fi Wall Sounder is a EN 54-3 (Type B) compliant acoustic device, equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally at the sounder. The wireless wall sounder, once properly connected to a wireless system on a compatible loop, is fully controlled by the panel and benefits from an extensive range of intelligent control, test and monitoring functionality, including sounder synchronisation.

Adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Key Features

• Bi-directional wireless communication
• 32 tones settings (primary and secondary for alert and evacuation), selectable via onboard dip switches
• On site adjustable volume settings
• Silent sounders setting for beacon only use
• Waterproof certified to IPX5
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 5 year expected battery life including weekly test
• Utilises standard low cost lithium battery technology
• Easy scan & link programming option
• 3rd party approval to EN54-3 (type B) and EN54-23
• Red and white body colours available
• 5 year product warranty.

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

100-2039V

EURV-SBR-IP65 Intelligent AV Wall Mounted Sounder Beacon

Available in red (100-2039V) or white (100-2039VW). The unit has a built in microphone which allows the unit to indicate a fault should the sounder not operate when activated or tested.

EVAC-RES-ISO

Dual Residential Isolator Module

The dual residential isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

EVAC-FLR-ISO

Single Floor Isolator Module

The single floor isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

100-2034V

EURV-OM-RM Single Relay Output Mini Module

The single output module (100-2034V) is loop-powered, designed around a fully digital protocol and provides a fast and secure response. The output channel is monitored and detects open and short circuit conditions. Connections are made using plug-in terminal blocks.
