Wireless Detection

[Premium]-Detector

Euro-fi Wireless Optical Smoke Detector (c/w base & batteries)

The EUW-PA-02 wireless dual optical smoke detector is the latest in wireless smoke detector technology. It is a fully intelligent device and compatible with all Euro-fi wireless translator and expander modules. The detector is designed for open area protection and utilises dual-path optical smoke detection technologies and algorithms for improved performance, whilst maintaining the high levels of unwanted alarm rejection.

Utilising well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability are achieved. An in-built magnet test allows easy activation to verify correct functionality and response.

[Premium]-Detector

Euro-fi Wireless Heat Detector (c/w base & batteries)

The EUW-TA-02 is the latest in wireless heat detector technology. It is a fully intelligent device and compatible with all Euro-Fi wireless Translator and Expander modules. The detector is designed for open area protection giving the best possible warning of a fire condition in locations where smoke detection technology is not suitable. The well-proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability are achieved. An in-built magnet test allows easy activation to verify correct functionality and response.

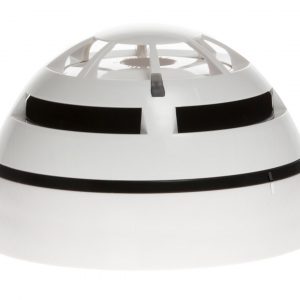

[Premium]-Detector

Euro-fi Wireless Multi-Criteria Detector (c/w base & batteries)

The EUW-MA-01 Wireless Multi Criteria Fire Detector is a fully intelligent device, compatible with all Euro-Fi Translator and Expander Modules. The sensor combines both smoke detection and thermal detection technologies which can be used separately or as a combined heat and smoke sensor for improved performance and reduced unwanted alarms. The patented chamber and double dust trap provides the chamber with additional protection from airborne contamination whilst the well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and system reliability.

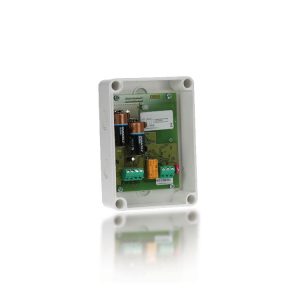

[PremiumWh]BOM

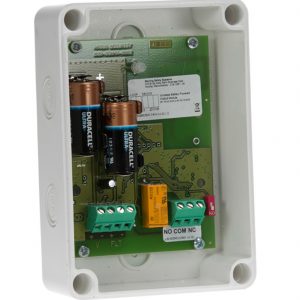

Euro-fi Wireless Single channel Powered Output Module C/W Back Box & Batteries

The Euro-fi EUW-BOM-03 Output Module has been designed to allow easy control of a variety of third party equipment including access control doors, ventilation plant and fire extinguishing systems. The unit is powered entirely from its internal battery supply and is fitted as standard with both a set of change over relay contacts and a 24V dc output. The 24V output is capable of supplying power for operating low current third party equipment directly from the internal batteries.

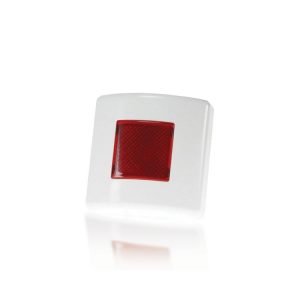

[PremiumWh]-RI

Euro-fi Static Wireless Remote Indicator (c/w back box & batteries)

The EUW-RI-02 Wireless Remote Indicator is a low profile unit with a large red LED panel, which can be used to indicate a variety of events or alarms on the fire system. When used with the Euro-fi EUW-W2W-01 translator module the unit is fully programmable through the control equipment cause and effect.

The device is ideal for indicating the activation of a detector which is located where visual alarm confirmation is difficult, such as a lift shaft, ceiling void or locked room. Indication of the operation of other part of the fire system is also possible. Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensures the highest levels of life safety and reliability.

Key Features:

  • Pleasing low profile design
  • 3rd party approval to ETSI 300-220
  • Bi-directional wireless communication
  • 5 year product warranty
  • Utilises dual low cost standard lithium batteries
  • Bright indicator panel (red)
  • Compatible with static Euro-fi translators and expanders
  • 5 year expected battery life
  • Site programmable
[PremiumWh]SBR

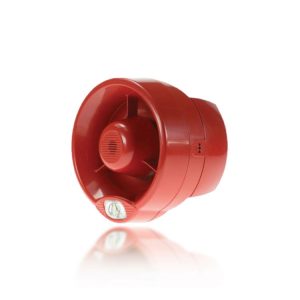

Euro-fi Weatherproof Sounder Beacon Red (c/w batteries)

The EUW-SBR-23-03 Conventional Wall Sounder VAD forms the core of our EN54-23 modular visual alarm device (VAD) range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (EUWSIM-01) or wireless module (EUW-SIM-01). All devices are weather proof therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.
[PremiumWh]SBR

Euro-fi Wireless Wall Sounder Beacon (Red)

The EUW-SBR-23-03 Conventional Wall Sounder VAD forms the core of our EN54-23 modular visual alarm device (VAD) range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (EUWSIM-01) or wireless module (EUW-SIM-01). All devices are weather proof therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.

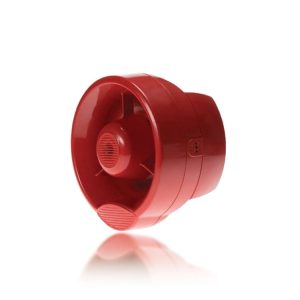

[PremiumWh]WSR

Euro-fi Weatherproof Wireless Wall Sounder Red (c/w batteries)

The EUW-WSR-IP-03 Conventional Wall Sounder forms the core of our EN54-3 range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (100-2050V) or wireless module (EUW-SIM-01). All devices are weatherproof, therefore this combined with the modular approach means the majority of applications can be achieved with very few components. The unit is equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally
at the sounder.
[PremiumWh]WSR

Euro-fi Wireless Wall Mounted Sounder Red (c/w batteries)

The EUW-WSR-23-03 Conventional Wall Sounder forms the core of our EN54-3 range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module (100-2050V) or wireless module (EUW-SIM-01). All devices are weatherproof, therefore this combined with the modular approach means the majority of applications can be achieved with very few components. The unit is equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally
at the sounder.

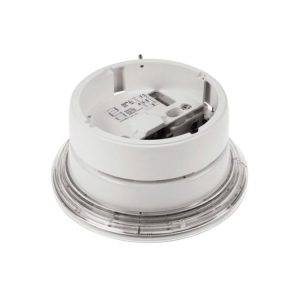

[PremiumWh]BSB

Euro-fi Wireless Base Sounder Beacon (c/w batteries)

The EUW-BSB-02 Wireless Sounder Base with Visual Indicator unit is an aesthetically pleasing and cost effective alternative to traditional wall mounted units where visual impact is important. Each unit has an integral moulded base for mounting a Euro-Fi wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones and 3 levels of volume adjustment, all of which can be easily configured on site. Additional to the audible warning the unit is also fitted with a LED visual indicator for added warning capability. Utilising well-proven adaptive radio signal processing algorithms ensures the highest levels of life safety and reliability.

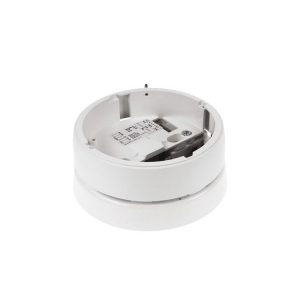

[PremiumWh]BS

Euro-fi Wireless Base Sounder (c/w batteries)

The EUW-BS-02 Wireless Sounder Base unit is an aesthetically pleasing and cost effective alternative to traditional wall mounted sounder units where visual impact is important. Each unit has an integral moulded base for mounting a Euro-Fi wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones and 3 levels of volume adjustment, all of which can be easily configured on site. Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

[Premium]-WPMCP

Weatherproof Wireless Manual Call Point C/W Back Box and Batteries

This Manual Call Point (MCP) is a fully intelligent device which is compatible with all Euro-Fi Translator and Expander Modules. The unit has a re-settable plastic element, which displays a drop down warning flag when operated. A key is supplied with the MCP for reset and case opening. The unit is fitted with a weatherproof enclosure for use outdoors or in hostile environments.

[Premium]-MCP

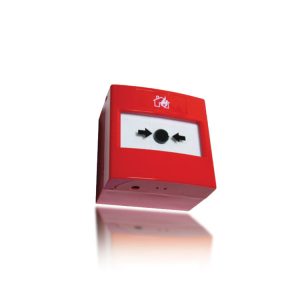

Euro-fi Wireless Manual Call Point - c/w back box & batteries

The EUW-CP-01 Manual Call Point (MCP) is a fully intelligent device which is compatible with all Euro-fi Translator and Expander Modules. The unit has a resettable plastic element, which displays a drop down warning flag when operated. A key is supplied with the MCP for reset and case opening. The unit can be fitted with an optional transparent cover for protection against accidental operation or with a weatherproof enclosure for use outdoors or in hostile environments.

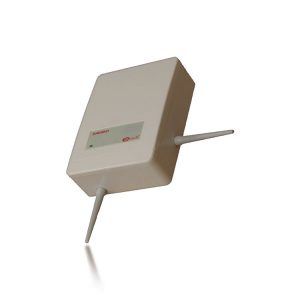

[PremiumWh]-CEM

Wireless to Conventional Expander Module (Requires Power Supply)

Key features

Bi-directional wireless communication • Self optimising wireless amplitude and frequency • Automatic wireless channel hopping • Fully intelligent • High reliability and sensitivity • Flexible on site device adjustment • IP68 protection for exterior mounting • Available in multiple protocols • Makes additions to existing wired systems easy and cost effective • Requires PSU

Indication

The unit has an inbuilt LCD display for indication of system status and for use when commissioning the unit. 5 LEDs indicate common system conditions.

Expander Modules

In cases where greater radio coverage is required the Translator may be used with one or more Expander Modules (EUW-EM-01).

PC Connection

The system has a RS232 connection to a PC. The PC link allows for complex system commisioning and provides a full set of survey and diagnostic tools. The EUW-CEM-02 is a fully Intelligent wireless to conventional Interface module.. The module allows the use of fully intelligent radio field devices alongside standard hard wired devices. Additional Information The wireless to conventional Interface is intended to be used with a fire control panel the application provides a simple way of expanding a pre-existing conventional / addressable hard-wired system with 32 addressable radio field devices including detectors,sounder / beacons, manual call points and input / output modules Design – The unit is housed in an IP68 housing making it suitable for mounting in wet environments and outdoors. – The Interface moduler is fitted with two orthogonal antennae which reduce radio fade and ensure reliable radio communication.

[PremiumWh]-EM

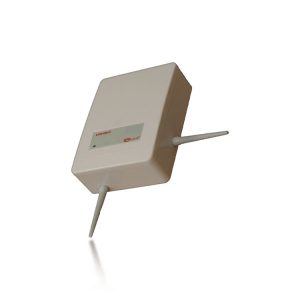

Euro-fi Wireless Expander Module

The EUW-EM-01 Expander Module is compatible with all Euro-Fi Wireless intelligent translators and the Euro-Fi Conventional Expander. The unit provides a convenient method to increase radio communication range beyond that possible from a single translator by relaying the radio communication to further expanders or directly to the wireless field devices. This functionality makes it possible to build large fully wireless systems or add wireless devices into areas where cabling for translators is difficult or impossible. All expanders are fully monitored ensuring the highest levels of life safety and reliability are maintained. When used with a dynamic translator multi path dynamic communications between translators and expanders is available.
