Eurotech Intelligent Supervised Output Module | EURV-OM-SP

Part Number 100-2032V Categories ,

Talk to our specialists

Description

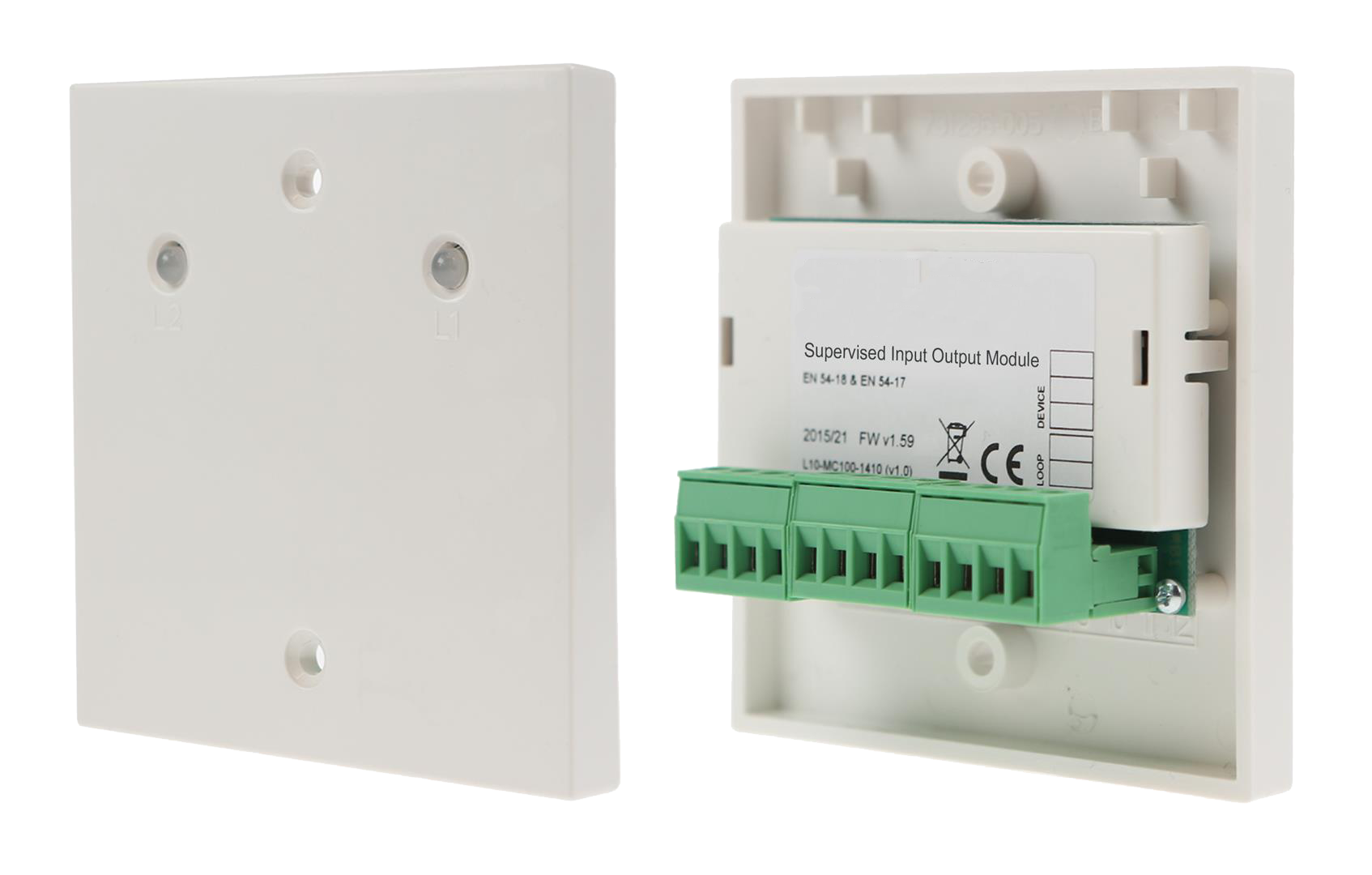

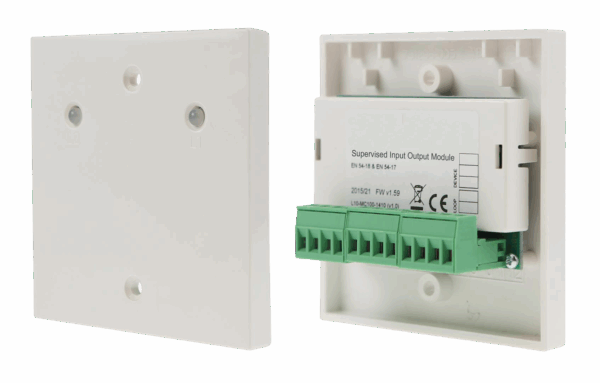

The Eurotech supervised output modules are loop powered and operates accordingly to the Eurotech protocol. A double bi-colour (red/green) LED driven by the control panel indicated the module condition. It is available in different shapes, useful for different installation requests.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.

100-2030V EURV-OM-SP Single Supervised Output Module (Wall Mount No Box/Plate)
100-2045V EURV-OM-SM Single Supervised Output Mini Module
100-2032V EURV-OM-SD Single Supervised Output Module DIN Rail Mount



Additional information

Key Features

– Employs the highly reliable Eurotech digital protocol
– 3rd party approval to EN54-17 and EN54-18
– Integrated short circuit isolators to protect and maintain operation
– Loop powered with very low current consumption
– Robust proven design offering operation over a wide temperature range
– Single monitored output circuit plus provision for external power
– Bi-colour LEDs show local status
– Fast fit plug-in cable connections
– Smaller mechanical package size enables the module to be installed inside other enclosures
– 5 year product warranty

Technical Specification

Loop Voltage Range: 15Vdc – 40Vdc*
Normal Standby Current: 200µA @ 24Vdc
Alarm Current (1 red LED): 6mA @ 24Vdc
Physical dimensions: 75 x 52 x 18mm (ex-fixings)
Relay ratings: 2A @ 30Vdc
Temperature Range (no icing): -10°C to +55°C
Max. humidity (non condensing): 95% RH
Weight: 160g

Sygno-fi Black Expander Module

Sygno-fi Translator Module - Black

The SYG-W2W-B Sygno-fi Translator Module is the core component of the Sygno-fi intelligent hybrid fire detection and alarm system. When connected on to a compatible loop, the unit is capable of linking up to 128 fully intelligent wireless field devices with the fire alarm system. All wireless communications rely on a channel pair for spurious RF noise rejection and maximum link reliability.

The translator allows fully intelligent and seamless integration of the wireless devices alongside standard wired devices or can be used independently to for completely wireless systems. Using cutting-edge wireless technology and a proprietary orthogonal antenna design it ensures the highest levels of life safety and system reliability.

Sygno-fi Black Expander Module

Sygno-fi Expander Module - Black

The SYG-EM-B Sygno-fi Expander Module is compatible with all Sygno-fi wireless intelligent translators and the conventional expander.

The unit provides a convenient method to increase radio communication range beyond that possible from a single translator by relaying the radio communication to further expanders or directly to the wireless field devices, allowing to build large fully wireless systems or add wireless devices onto areas where cabling for translators is difficult or impossible.

The expanders are programmable for a redundant path to the translator, so that if any expander in the chain fails, the transmission path can find an alternate route. The redundant paths are identified and tested during system commissioning for maximum reliability. All the wireless communication relies on a channel pair for spurious RF noise rejections and maximum link reliability. All expanders are fully monitored ensuring that the highest levels of life safety are maintained.

Sygno-fi Black Base Sounder VAD

Sygno-fi Sounder VAD Base - Black (White Flash)

The SYG-BSB-23W-B Sygno-fi Sounder VAD base(white flash) is a high performance device, incorporating an EN54-23 compliant VAD used to alert people in the event of a fire.

Each unit has an integral moulded base for mounting an wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, as well as high power/low power visual settings, all of which can be easily configured on site.

Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Sygno-fi Sounder Base - Black

Sygno-fi Sounder Base - Black

The SYG-BS-B Sygno-fi Sounder Base unit is a high performance wireless sounder base that can be used as stand-alone notification device (with a blanking cap) or as a combined detection and alarm device when fitted with an integral Sygno-fi optical, heat or multi detector.

The SYG-BS-B unit has as standard 32+32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, all of which can be easily configured on site.

It is powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.
