Eurotech Intelligent A1R Heat Detector

Part Number 100-2200V Categories ,

Talk to our specialists

Description

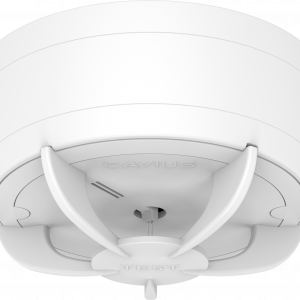

The EURV-H-A1R Intelligent Heat Detector is a point detection device that continuously samples for temperature variation in the protected area to provide the earliest warning of a fire condition in areas where traditional smoke detection products are not suitable. This detector forms part of the Eurotech range of aesthetically pleasing low profile detection and alarm products and is fully compatible with all fire control equipment utilising the Eurotech fully digital communication protocol. An integral magnet test facility allows easy activation to verify correct functionality and reporting.

The EURV-H-A1R heat detector supervises environmental temperature with low thermal inertia allowing the device to operate as an A1R or BS detector. This is selectable using the 100-8003V programming tool.

Additional information

Technical Specification

Operating Voltage: 18 – 40 Vdc
IP Rating: 40
Base Cable Sizes: 0.5 mm2 to 2.5 mm2
Max Humidity: 95%
Temp Range: -30 C to +70 C
RoR A1R Class Alarm Threshold: 58 C
Class BS Alarm Threshold: 78 C
Weight: 130 g

Width: 110 mm
Height: 60 mm

Scorpion ASD Head Unit

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

C-TEC CFP761 Network Driver Card

CFP Network Driver Card (CFP761)

  • An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
C-TEC XFP761 Network Driver Card

XFP Network Driver Card (XFP761)

  • An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
  • Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
