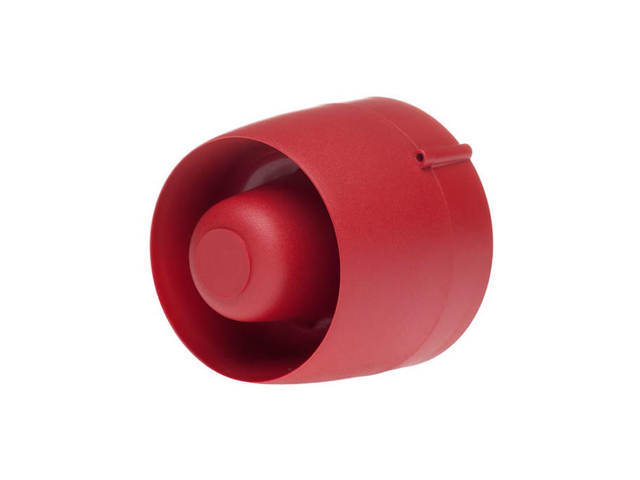

EVTG Sounder Red Shallow Base

EVTG Conventional Wall Sounder

Part Number 510-017EUR Categories Conventional Devices, Eurotech Conventional Devices, Odyssey Conventional Devices

Talk to our specialists

(0)203 141 0999

Description

Description

The EVTG family of sounders has been designed to cover a wide spectrum of applications. The 24 volt EN54-3 approved version is for use with conventional fire alarm systems including two wire (SAV-WIRE®) and as standard comes with 32 tones. The sounder is supplied with a two stage alarm override which is activated by a third negative wire from the fire panel.

All tones have been selected to comply with the latest sound patterns and frequencies used throughout the world. All tone options are fully synchronised. The sounder function has been fully approved to EN54-3 by the LPCB and VdS on tones 1, 8, 11, 25 and 27.

Features

Fully approved to EN54-3 by LPCB and VdS
32 tones plus a selectable override tone
Shallow base IP21C and deep base IP33C versions available
Designed to work with both conventional and two-wire (SAV-WIRE®) systems
Unique twist and lock bayonet mounting system
Removable cover on deep base for surface wiring
Features base locking system as standard

Sygno-fi Translator Module - Black

The SYG-W2W-B Sygno-fi Translator Module is the core component of the Sygno-fi intelligent hybrid fire detection and alarm system. When connected on to a compatible loop, the unit is capable of linking up to 128 fully intelligent wireless field devices with the fire alarm system. All wireless communications rely on a channel pair for spurious RF noise rejection and maximum link reliability.

The translator allows fully intelligent and seamless integration of the wireless devices alongside standard wired devices or can be used independently to for completely wireless systems. Using cutting-edge wireless technology and a proprietary orthogonal antenna design it ensures the highest levels of life safety and system reliability.

Sygno-fi Expander Module - Black

The SYG-EM-B Sygno-fi Expander Module is compatible with all Sygno-fi wireless intelligent translators and the conventional expander.

The unit provides a convenient method to increase radio communication range beyond that possible from a single translator by relaying the radio communication to further expanders or directly to the wireless field devices, allowing to build large fully wireless systems or add wireless devices onto areas where cabling for translators is difficult or impossible.

The expanders are programmable for a redundant path to the translator, so that if any expander in the chain fails, the transmission path can find an alternate route. The redundant paths are identified and tested during system commissioning for maximum reliability. All the wireless communication relies on a channel pair for spurious RF noise rejections and maximum link reliability. All expanders are fully monitored ensuring that the highest levels of life safety are maintained.

Sygno-fi Sounder VAD Base - Black (White Flash)

The SYG-BSB-23W-B Sygno-fi Sounder VAD base(white flash) is a high performance device, incorporating an EN54-23 compliant VAD used to alert people in the event of a fire.

Each unit has an integral moulded base for mounting an wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, as well as high power/low power visual settings, all of which can be easily configured on site.

Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Sygno-fi Sounder Base - Black

The SYG-BS-B Sygno-fi Sounder Base unit is a high performance wireless sounder base that can be used as stand-alone notification device (with a blanking cap) or as a combined detection and alarm device when fitted with an integral Sygno-fi optical, heat or multi detector.

The SYG-BS-B unit has as standard 32+32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, all of which can be easily configured on site.

It is powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.
