Specialist Devices

Hochiki Marine Approved Weatherproof Addressable Manual Call Point with SCI (Red)

Model HCP-WM(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing*1 for communications polling and is continuously lit when the unit is operated – in these two states the LED will show red. The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit.

Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. An optional glass element is also available.

Hochiki Module Back Box

The CHQ-BACKBOX is designed for installations where the CHQ “Smart-Fix” Modules (CHQ-DIM, CHQ-SZM, CHQ-DZM, CHQ-DSC, CHQ-MRC, CHQ-DRC, plus SCI versions) require mounting within a glanded enclosure. The unit features ten knock-outs suitable for cable glands and accepts the CHQ Modules directly as a lid.

Hochiki Single Input Module

The CHQ-SIM has been designed to allow a single monitored input to be connected to the ESP loop. This provides a compact, low-cost option where the installation of the larger CHQ ‘Smart-Fix’ Range of Modules might be difficult.

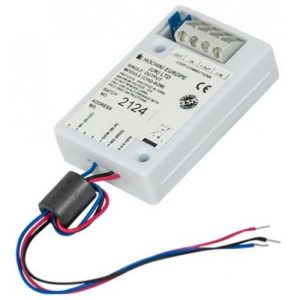

Hochiki Single Output Module

The CHQ-SOM(HFP) has been designed to allow a single relay output to be connected to the ESP loop. The unit incorporates a volt-free relay contact that can be configured as either N/O or N/C, the relay contact is rated to 30 V dc (max), 1 A (resistive load).

Hochiki Surface Mounting Call Point Back Box (Red)

A surface mounted back box for the HCP-E(SCI) manual call point which is 32 mm deep.

Key Features

Durable
For use with HCP-E call point range
Allows addressable call point to be surface mounted

Ordering codes: SR BACKBOX
For use with: HCP-E range
Dimensions: 86 mm (W) x 86 mm (H) x 32mm
Colour / Case Material: Red / ABS

Hochiki Surface Mounting Call Point Box (Yellow)

A surface mounted back box for the HCP-Y(SCI) yellow manual call point which is 32mm deep.

Key Features

For surface mounting of the HCP call points
Yellow colour
32 mm deep
86 mm square

Hochiki Wall Beacon – Ivory case, white LEDs

An addressable loop-powered wall beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage includes 5, 5.5 and 7 sqm*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.

Hochiki Wall Beacon – Red case, red LEDs

Hochiki Wall Beacon – White case, red LEDs

Hochiki Wall Sounder Beacon – Red Case, Red LEDs

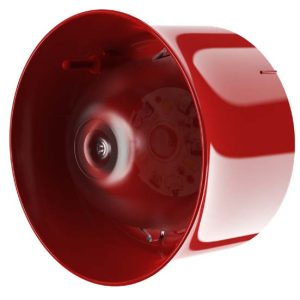

Model CHQ-WSB2 is an addressable loop-powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption.

Hochiki Wall Sounder Beacon – Red case, white LEDs

Model CHQ-WSB2 is an addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with
low current consumption. The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Base (CHQ-WPK) & YBOR/SCI(WHT))
or the Isolator Base (YBO-R/SCI(RED) & YBO-R/SCI(WHT)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

Also incorporates an auto shutdown mode*1 which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.

Hochiki Wall Sounder Beacon – White Case, Red LEDs

Hochiki Wall Sounder Beacon – White case, white LEDs

Model CHQ-WSB2 is an addressable loop powered Wall Sounder Beacon innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit features an integral beacon within the horn utilising high intensity LED technology and is designed to fit to the Standard Base (CHQ-WPK) & YBOR/SCI(WHT))
or the Isolator Base (YBO-R/SCI(RED) & YBO-R/SCI(WHT)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

Also incorporates an auto shutdown mode*1 which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
