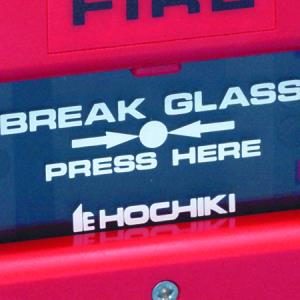

Hochiki Glass Element for Call Point – with Hochiki logo
Glass Element for Call Point – with Hochiki logo
Glass Element for Call Point – with Hochiki logo

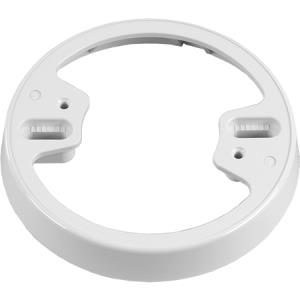

The YBD-RA(WHT) Surface Wiring Adaptor allows the majority of Hochiki Sensors/Detectors and their Mounting Bases to be fitted flush against a fixing surface whilst also allowing surface wiring (without conduit) to be connected.
The adaptor features four 9mm x 8mm knock-outs for cables/wires allowing surface-fixed wiring to be connected to an appropriate mounting base (depending on application). The adaptor is moulded in ivory white ABS as standard, which allows seamless integration with the majority of mounting bases and associated sensors and detectors.
Key Features:

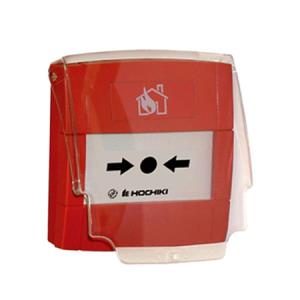

An acrylic hinged cover for the HCP-E(SCI) manual call point range which protects against accidental operation/vandalism.
Key Features

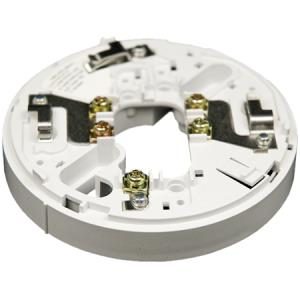

Model YBO-R/3 is a Sounder Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors and designed specifically for the Hochiki range of wall sounders, the CHQ-WS2 Wall Sounder and the CHQ-WSB2 Wall Sounder Beacon.
It is supplied with square cable clamps for secure and reliable cable termination.
Model YBO-R/3 is a Sounder Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors and designed specifically for the Hochiki range of wall sounders, the CHQ-WS2 Wall Sounder and the CHQ-WSB2 Wall Sounder Beacon.
It is supplied with square cable clamps for secure and reliable cable termination.
Model YBO-R/3 is a Sounder Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors and designed specifically for the Hochiki range of wall sounders, the CHQ-WS2 Wall Sounder and the CHQ-WSB2 Wall Sounder Beacon.
It is supplied with square cable clamps for secure and reliable cable termination.

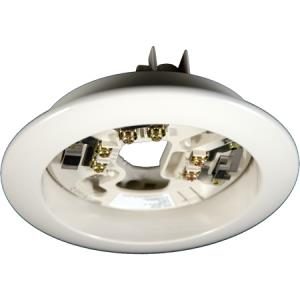

Model YBN-UA is a mounting adaptor for both the ESP and CDX Range of sensors and Detectors and their associated mounting bases. The YBN-UA allows a base and head combination to be flush mounted by providing a recess fixing the ceiling.
It is supplied with a fixing clamp kit (YYA-1) which secures the YBN-UA within a pre-cut hole up to a maximum ceiling thickness of 30mm.

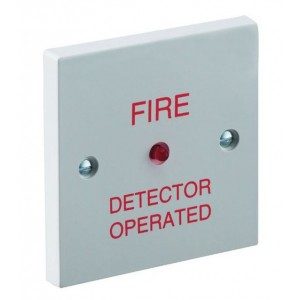

The REM-E Remote Indicator is designed for fire detection systems requiring local indication of an individual or group of fire detectors in alarm utilising an LED with a wide area of illumination and high on/off contrast. The unit comes with a single gang, purpose-designed back box and operates with many types of conventional and analogue addressable fire detectors, frequently eliminating the requirements to stock two types of indicator. The device can also be used for other applications requiring a local visual indicator such as process control, security and shut down operations.

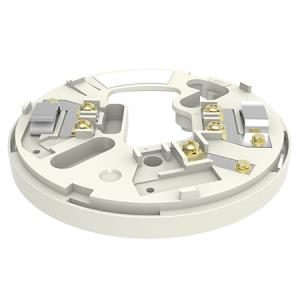

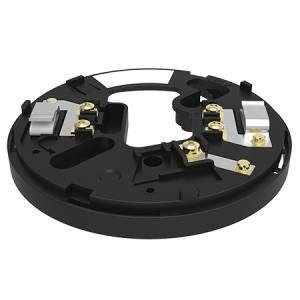

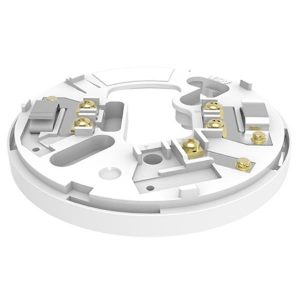

Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.

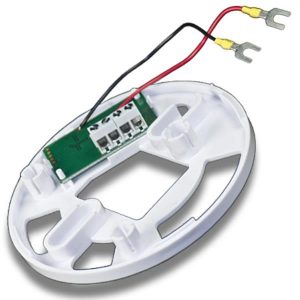

The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base. This combined unit will then detect and
isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the combined unit.
NOTE: A fitted sensor will still be powered when this device is isolating.
The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base. This combined unit will then detect and
isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the combined unit.
NOTE: A fitted sensor will still be powered when this device is isolating.
YBN-R/3(SCI)M is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop. The YBN-R/3(SCI)M is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
NOTE: A fitted sensor will still be powered when this device is isolating.

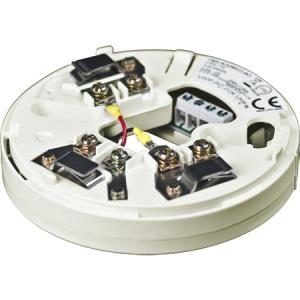

Model YBN-R/3(SCI) is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop.
The YBN-R/3(SCI) is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
NOTE: A fitted sensor will still be powered when this device is isolating.

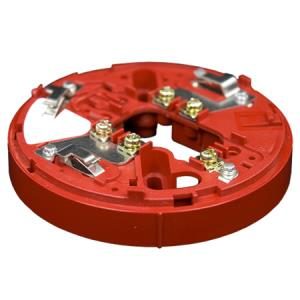

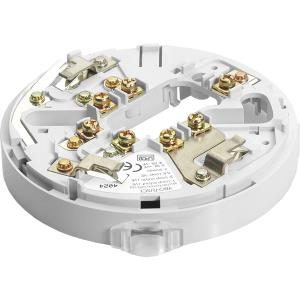

Model YBO-R/SCI(WHT/SNDR) is a Loop Isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The YBO-R/SCI(WHT/SNDR) Base has been specifically designed to be compatible with the white wall sounder (CHQ-WS2(WHT)) and the white wall sounder beacon (CHQ-WSB2(WHT)).
The Base incorporates an amber LED to show when it is isolating a section of the loop. The YBO-R/SCI(WHT/SNDR) does not use an address, and has the same wiring configuration as the YBN-R/3 Sensor Base making it very simple to install. The YBO-R/SCI(WHT/SNDR) can also be used without a sounder; a cover (SI-CAP) can be fitted to conceal the wiring connections.
Key Features:
