Devices

[PremiumWh]-300-2011

Eurotech Remote Indicator Unit

The RIU Remote Indicator Unit is used to give a remote indication of the status of a single or groups of fire detectors in alarm state utilising
an LED with a wide area of illumination and high on/off contrast.

The units are compatible with the majority of conventional and addressable systems and can also be used for security
and process control applications.

The standard version is a single gang flush mount unit, with or without ‘Fire Detector Operated’ text and also available
with a deep back box for surface mounting.

Features

  • Direct fit to a single gang deep back box
  • Circular flush mounted version available without text
  • Text is available in other languages
  • Custom legend available on request
  • IP66 weatherproof version available
200-101

Odyssey Sounder Beacon Base with Isolator

The Sounder Beacon Base with visual indicater is a loop-powered sounder and visual indicator combined with a standard Intelligent Mounting Base. It is used to signal a fire alarm in enclosed areas.

  • Two volume ranges 55-75dB(A) and 75-91dB(A)
  • Visual indicator flash rate of once per second
  • Synchronisation of ‘alert’ and ‘evacuate’ tones
  • Synchronisation of visual indicator flash
  • Individual and group addressing
  • Unique acoustic and visual indicator self-test
  • Built-in Isolator
Odyssey base sounder

Odyssey Integrated Base Sounder with Isolator (includes base)

The Integrated Base Sounder comprises of a base sounder with integral mounting base and is for use with the Odyssey range. It is designed for indoor use.

  • Two tones
  • Two volume ranges 55-75dB(A) and 75-91dB(A)
  • Individual and group addressing
  • Unique acoustic self-test
  • Built-in isolator
200-106

Odyssey Ancillary Base Sounder

The Ancillary Base Sounder is a local-area sounder designed for indoor use. It can be connected only to detection systems using Odyssey detectors and control panels with appropriate software.

  • Sound output of 85dB(A) at 1 metre
  • Current consumption of only 3mA
  • Loop-powered
  • Responds to signals from the associated detector – does not have an address of its own
  • Adjustable volume control.
Odyssey MCP

Odyssey Intelligent Manual Call Point (w/ Isolator)

The Odyssey Manual Call Point has a highly visible alarm indicator which can be seen from up to 10 metres away. When activated, the manual call point interrupts the polling cycle for a fast response. A combined LED indicator and front reset mechanism allows for a quick and simple reset.

  • EN 54-11 Approved  (EN 54-17 Approved for Isolator version)
  • E-Z fit connectors
  • Front facing addressing without the need to detach the backbox
  • A unique, ergonomically designed key for resetting and front cover removal
  • Backward compatibility and retro-fit
  • Resettable element
Eurotech Wall Sounder Beacon Red

Eurotech Conventional Part 23 Approved Wall Mounted Sounder Beacon

The EURVC-SB Conventional Wall Sounder VAD forms the core of our EN54-23 modular visual alarm device (VAD) range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module or wireless module. All devices are weather proof therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.

200-110

Odyssey Loop-Powered Beacons

The Loop-Powered Visual Indicator is a local-area visual indicator designed for indoor use. The Visual Indicator has been developed as a supplement to sounders for use in situations where there is a risk that sounders will not be heard.

  • High intensity LEDs
  • More reliable than xenon visual indicators
  • Automatic LED check
  • Lockable
  • Wide angle of visibility
  • Enables DDA compliance
  • Synchronised flash
  • Can be used with Odyssey systems
200-105

Odyssey Intelligent Open-Area Beacons (Sonos)

The Intelligent Open-Area Beacon Visual Indicator has been developed for use in situations where there is a risk that sounders will not be heard.

  • For use with Odyssey systems
  • Self-test fault monitoring
  • IP65 rated
  • Individual and group addressing
  • Synchronisation of flashes
  • Comes with Isolating Base as standard
  • Loop-powered
  • Red and clear lens option
200-104

Odyssey Intelligent Open-Area Sounder Beacons (Sonos)

The Intelligent Open-Area Sounder Beacon Visual Indicator is designed for use in open areas and can be connected to an Odyssey system.

  • Self-test monitoring
  • Choice of tones on standard device: Odyssey, Slow Whoop and DIN
  • Two volume settings 92dB(A) and 100dB(A)
  • Individual and group addressing
  • Sycronisation of tones and flashes
  • Built in isolator
  • Loop-powered
  • IP65 rated
  • Red and clear lens options
Odyssey-Open-Area-Sounder-Beacon-600x600

Odyssey Intelligent Open-Area Sounders (Sonos)

The Intelligent Open-Area Sounder has been designed for use in open areas and can be connected to any Odyssey system.

  • Self-test fault monitoring
  • Choice of tones on standard device: Odyssey, Slow Whoop and DIN
  • Two volume settings 92dB(A) and 100dB(A)
  • Synchronisation of tones
  • Individual and group addressing
  • Built in isolator
  • Red or white options
  • Loop-powered
  • IP65 rated
EURV-OM-RP

Eurotech Intelligent Relay Output | EURV-OM-RP

One output loop powered relay module is based on SPDT relay. The output source channel is normally a de-energised relay switched on by a command from the control panel. It is switched on by a special command from the control panel. It is available in different mounting configurations.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.
100-2033V EURV-OM-RP Single Relay Output Module (Wall Mount No Box/Plate)
100-2034V EURV-OM-RM Single Relay Output Mini Module
100-2026V EURV-OM-RD Single Relay Output Module DIN Rail Mount

Supervised-Input-Module-600x383

Eurotech Intelligent Supervised Input Module | EURV-IM-SP

The Eurotech supervised input modules are loop powered and operates using the Eurotech protocol. The input channel is supervised and will detect normal/short/alarm/open conditions. Fast alarm and fault signalling. It is available in different shapes, useful for different installation requests.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.

100-2027V – EURV-IM-SP Single Supervised Input Module (Wall Mount No Box/Plate)

100-2025V – EURV-IM-SM Single Supervised Input Mini Module

100-2028V – EURV-IM-SO Single Supervised Input Module DIN Rail

ERUV-SIO

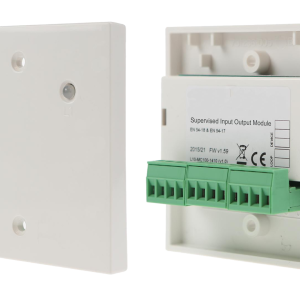

Eurotech Intelligent Supervised Input/Output Module | EURV-SIO

The Eurotech supervised input output modules are loop powered and designed around a fully digital protocol. The input channel is supervised and will detect normal/short/alarm/open conditions. An additional opto-coupled inout active in de-energized condition supervises the external power supply. Fast alarm and fault signalling. The modules are available in different mounting configurations.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.

100-2031V EURV-SIO Single Input & Single Supervised Output Module (Wall Mount No Box/Plate)

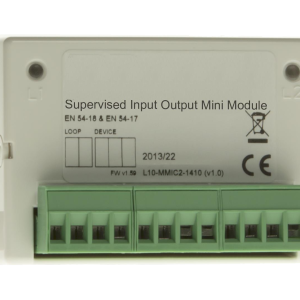

100-2035V EURV-IO-SM Single Input & Single Supervised Output Mini Module
100-2036V EURV-IO-RP Single Input & Single Supervised Output Module DIN Rail Mount

EURV-OM-SP

Eurotech Intelligent Supervised Output Module | EURV-OM-SP

The Eurotech supervised output modules are loop powered and operates accordingly to the Eurotech protocol. A double bi-colour (red/green) LED driven by the control panel indicated the module condition. It is available in different shapes, useful for different installation requests.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.

100-2030V EURV-OM-SP Single Supervised Output Module (Wall Mount No Box/Plate)
100-2045V EURV-OM-SM Single Supervised Output Mini Module
100-2032V EURV-OM-SD Single Supervised Output Module DIN Rail Mount



EURV-IO-RP

Eurotech Single Input and Single Relay Output Module

The Eurotech single input and relay output modules are loop powered and designed around a fully digital protocol. The input channel is supervised and will detect normal/short/alarm/open conditions.
The output channel is normally a de-energized relay switched on by command from the panel. Fast Alarm and fault signalling.

The modules are available in different mounting configurations.

Mixed Interfaces

Eurotech Intelligent Isolator Module | EURV-ISO

Single gang back box mounted stand alone “dumb” short circuit isolator.
