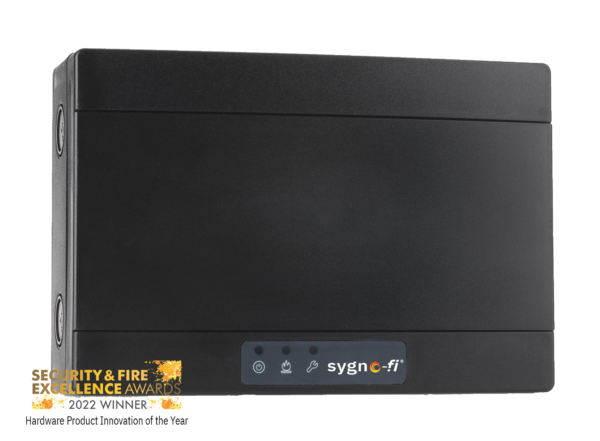

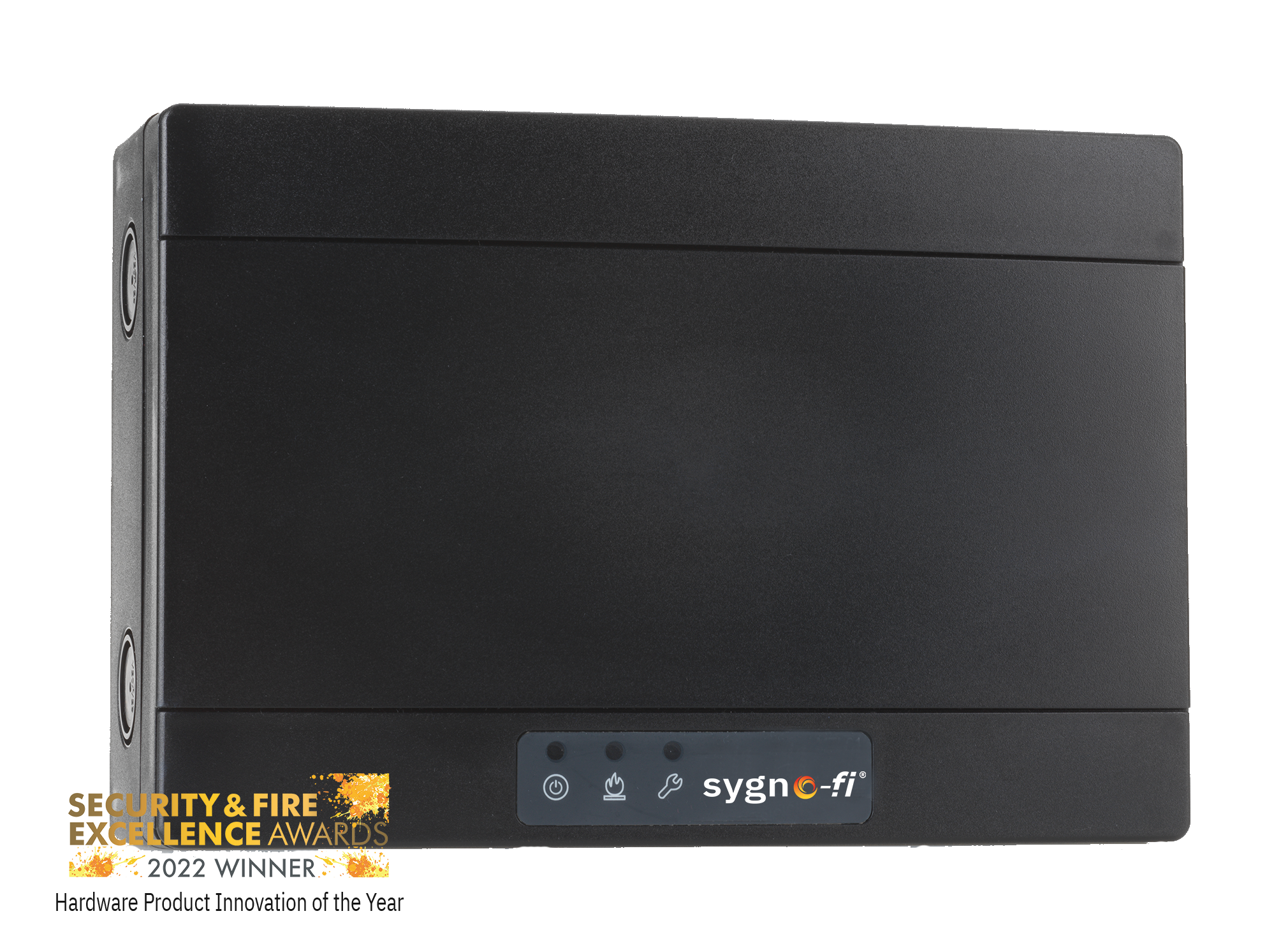

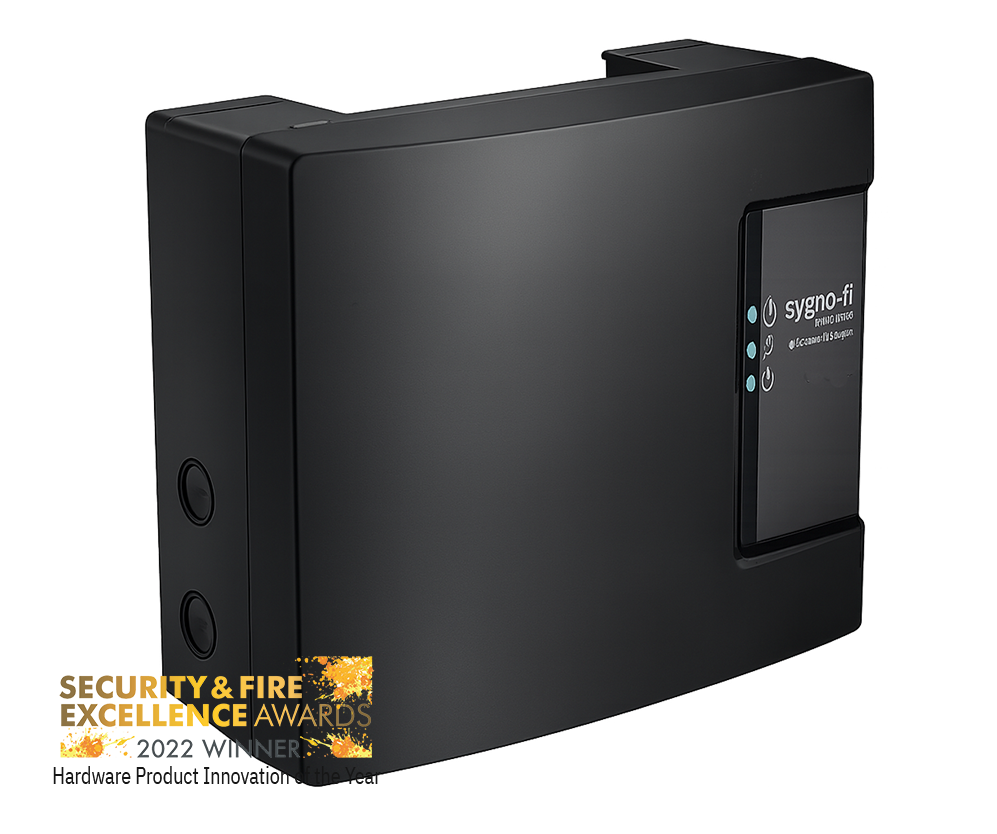

Sygno-fi Translator Module - Black

Description

The SYG-W2W-B Sygno-fi Translator Module is the core component of the Sygno-fi intelligent hybrid fire detection and alarm system.

Additional information

Further Description	When connected on to a compatible loop, the unit is capable of linking up to 128 fully intelligent wireless field devices with the fire alarm system. All wireless communications rely on a channel pair for spurious RF noise rejection and maximum link reliability. The translator allows fully intelligent and seamless integration of the wireless devices alongside standard wired devices or can be used independently to for completely wireless systems. Using cutting-edge wireless technology and a proprietary orthogonal antenna design it ensures the highest levels of life safety and system reliability.
Key Features	• Loop powered or via external power supply unit • Bi-directional wireless communication • Compatible with up to 8 layers/15 expander modules • Mesh expander technology programmable for redundant path to the translator • Internal antennae design protects from environmental conditions, vandalism, accidental damage or misuse • Low current consumption • 8 pairs of network channels • Dual channel redundancy • Long communication range (≅ 1 km in open air) • Full analogue data availability (eg optical and thermal value, link quality, battery status, chamber drift compensation status) • Site programmable via internal keypad, or via wireless or wired PC connection • Full system programming capability from the translator • Easy scan & link programming option • 3rd party approval to EN54-17, EN54-18 and EN54-25 • 5 year product warranty

Further Description

When connected on to a compatible loop, the unit is capable of linking up to 128 fully intelligent wireless field devices with the fire alarm system. All wireless communications rely on a channel pair for spurious RF noise rejection and maximum link reliability.

The translator allows fully intelligent and seamless integration of the wireless devices alongside standard wired devices or can be used independently to for completely wireless systems. Using cutting-edge wireless technology and a proprietary orthogonal antenna design it ensures the highest levels of life safety and system reliability.

Key Features

• Loop powered or via external power supply unit
• Bi-directional wireless communication
• Compatible with up to 8 layers/15 expander modules
• Mesh expander technology programmable for redundant path to the translator
• Internal antennae design protects from environmental conditions, vandalism, accidental damage or misuse
• Low current consumption
• 8 pairs of network channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• Full analogue data availability (eg optical and thermal value, link quality, battery status, chamber drift compensation status)
• Site programmable via internal keypad, or via wireless or wired PC connection
• Full system programming capability from the translator
• Easy scan & link programming option
• 3rd party approval to EN54-17, EN54-18 and EN54-25
• 5 year product warranty

Download the Sygno-fi Digital Brochure below:
