EUW-PA-02 wireless optical smoke detector

Eurotech Intelligent Multi-Sensor Detector

100-2400V Datasheet

Part Number 100-2400V Categories Eurotech Intelligent Devices, Intelligent Devices

Talk to our specialists

(0)203 141 0999

Description
Additional information

Description

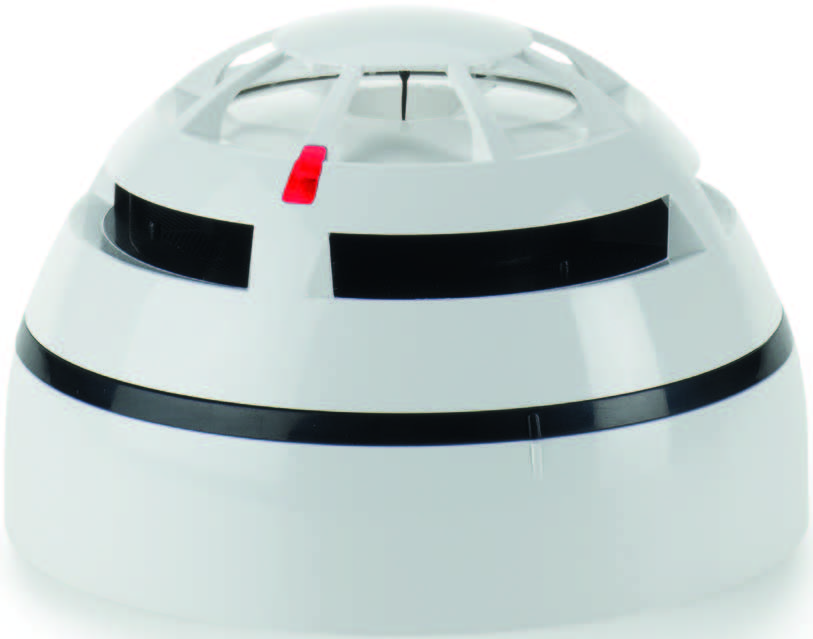

The EURV-PH Intelligent Multi-Criteria Detector is a point detection device that continuously samples both the air and the temperature variation in the protected area to provide the earliest warning of a fire condition. Special algorithms utilise information from both the smoke and heat sensing elements to ensure high level of false alarm rejection without compromising genuine alarm sensing performance. This detector forms part of the Eurotech range of aesthetically pleasing low profile detection and alarm products and is fully compatible with all fire control equipment utilising the Eurotech fully digital communication protocol.

Additional information

Technical Specification	Operating Voltage: 18 – 40 Vdc Standby Current: 75 uA IP Rating: 40 Base Cable Sizes: 0.5 mm2 to 2.5 mm2 Max Humidity: 95 % Temp Range: -30 C to +70 C RoR A1R Class Alarm Threshold: 58 C Class BS Alarm Threshold: 78 C Weight: 130 g Width: 110 mm Height: 60 mm

Technical Specification

Operating Voltage: 18 – 40 Vdc
Standby Current: 75 uA
IP Rating: 40
Base Cable Sizes: 0.5 mm2 to 2.5 mm2
Max Humidity: 95 %
Temp Range: -30 C to +70 C
RoR A1R Class Alarm Threshold: 58 C
Class BS Alarm Threshold: 78 C
Weight: 130 g

Width: 110 mm
Height: 60 mm

Eurotech Intelligent Manual Call Point

The Eurotech resettable indoor call point is smooth and quick to install thanks to the easy wiring design and the front operating element that snaps into place requiring no additional tools.
The call point benefits from improved levels of visibility thanks to a reflective polyester flag at the bottom of the operating face and a brightly illuminated LED ring in the centre of the active area which allows the alarm condition to be viewed over a wide angle of 170 degrees. The alarm flag indicator can be easily reset using the call point key provided, making the call point ready for immediate re-use.

Cavius CO Alarm (CV4002)

Carbon monoxide alarm device.
Designed for installation in private homes, camping trailers, mobile homes and caravans.
The alarm will make a CO sensor reading every 30 seconds if the concentration is less than 200ppm. At 200ppm or higher the readings will be made every 10 seconds.

Cavius RF Mains Powered Heat Alarm (CV3202)

Mains powered thermal heat alarm device with wireless interlink and battery back-up.
Designed for installation in private homes or garages with risk for smoky, dusty or humid environment, as for example kitchen and garage area. This alarm can be connected with other alarms from the CAVIUS Wireless alarm family or function as a stand-alone alarm.
Placed max 5,3 meters away from any heating source.

Cavius Smart Remote (CV9001)

Smart remote with emergency light.
Designed to alert with a rapid flashing warning light, vibration and buzzing when alarming and to remote control the CAVIUS Wireless alarms Family. Torch function to find escape routes at night.
