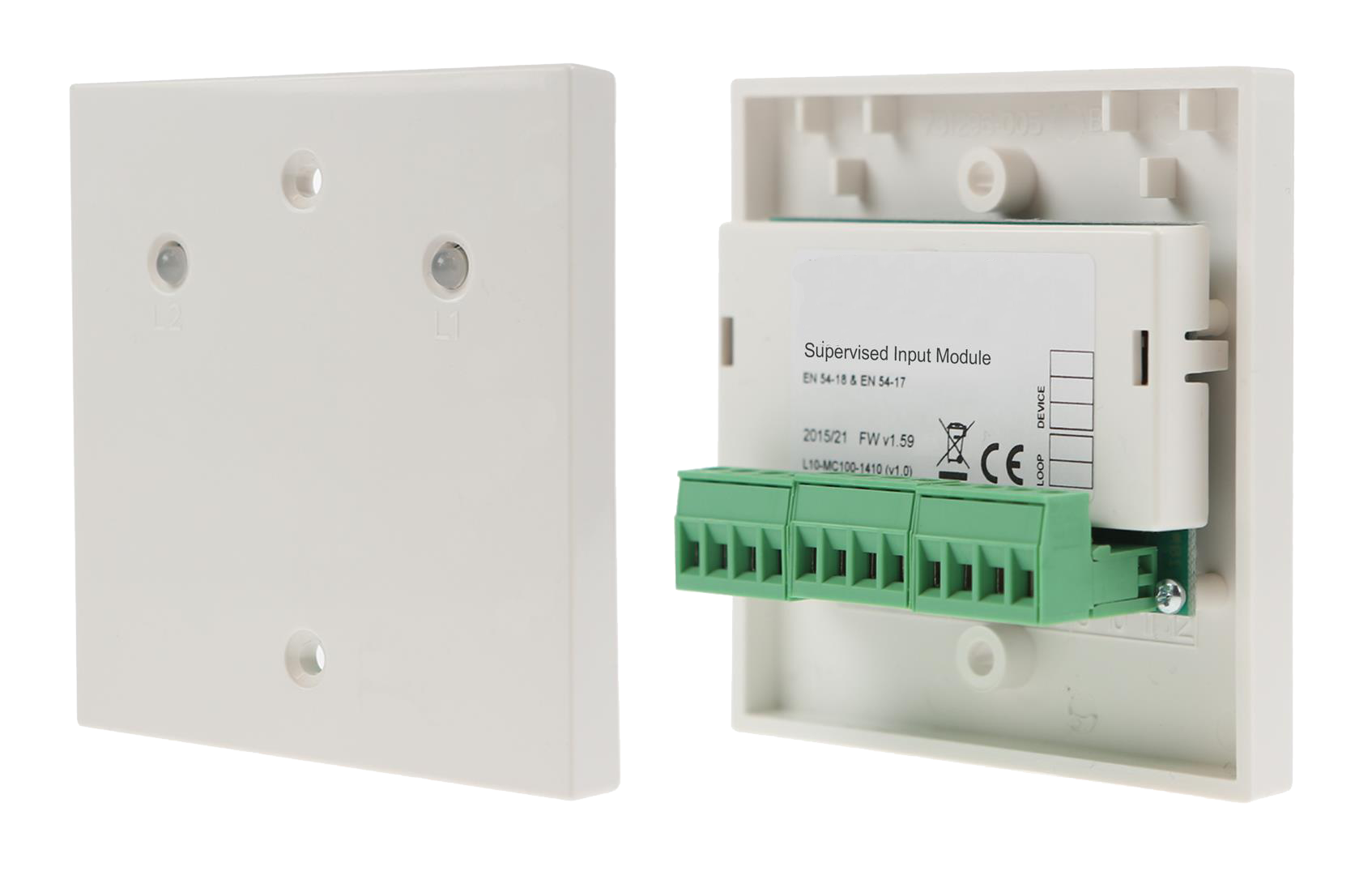

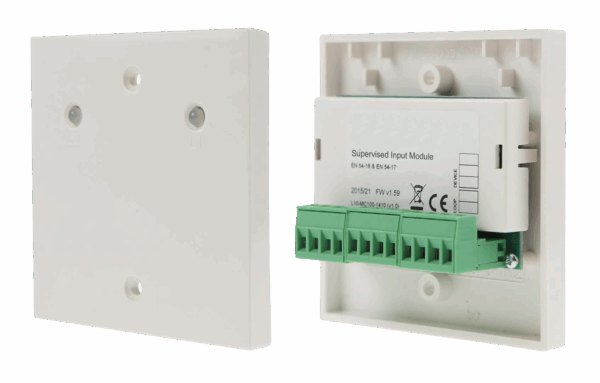

Eurotech Intelligent Supervised Input Module | EURV-IM-SP

Part Number 100-2028V Categories Eurotech Intelligent Devices, Intelligent Devices

Talk to our specialists

(0)203 141 0999

Description
Additional information

Description

The Eurotech supervised input modules are loop powered and operates using the Eurotech protocol. The input channel is supervised and will detect normal/short/alarm/open conditions. Fast alarm and fault signalling. It is available in different shapes, useful for different installation requests.

Eurotech Intelligent Modules are available in 3 different mounting options; Plate, Mini and DIN Rail.

100-2027V – EURV-IM-SP Single Supervised Input Module (Wall Mount No Box/Plate)

100-2025V – EURV-IM-SM Single Supervised Input Mini Module

100-2028V – EURV-IM-SO Single Supervised Input Module DIN Rail

Additional information

Key Features	– Employs the highly reliable Eurotech digital protocol – 3rd party approval to EN54-17 and EN54-18 – Integrated short circuit isolators to protect and maintain operation – Loop powered with very low current consumption – Robust proven design offering operation over a wide temperature range – Single monitored input circuit – Fast fit plug-in cable connections – Smaller mechanical package size enables the module to be installed inside other enclosures – Bi-colour status LED – 5 year product warranty
Technical Specification	Loop voltage range: 15Vdc – 40Vdc* Normal Standby Current: 150µA @ 24Vdc Alarm Current (1 red LED): 6mA @ 24Vdc Dimensions: 75 x 52 x 18mm (ex-fixings) Temperature Range (no icing): -10°C to +55°C Max. humidity (non condensing): 95% RH Weight: 160g

Key Features

– Employs the highly reliable Eurotech digital protocol
– 3rd party approval to EN54-17 and EN54-18
– Integrated short circuit isolators to protect and maintain operation
– Loop powered with very low current consumption
– Robust proven design offering operation over a wide temperature range
– Single monitored input circuit
– Fast fit plug-in cable connections
– Smaller mechanical package size enables the module to be installed inside other enclosures
– Bi-colour status LED
– 5 year product warranty

Technical Specification

Loop voltage range: 15Vdc – 40Vdc*
Normal Standby Current: 150µA @ 24Vdc
Alarm Current (1 red LED): 6mA @ 24Vdc
Dimensions: 75 x 52 x 18mm (ex-fixings)
Temperature Range (no icing): -10°C to +55°C
Max. humidity (non condensing): 95% RH
Weight: 160g
