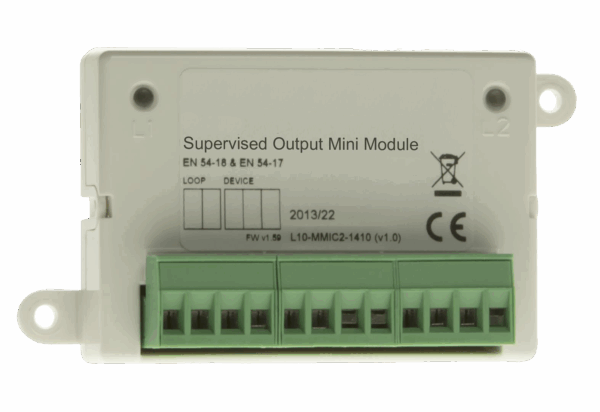

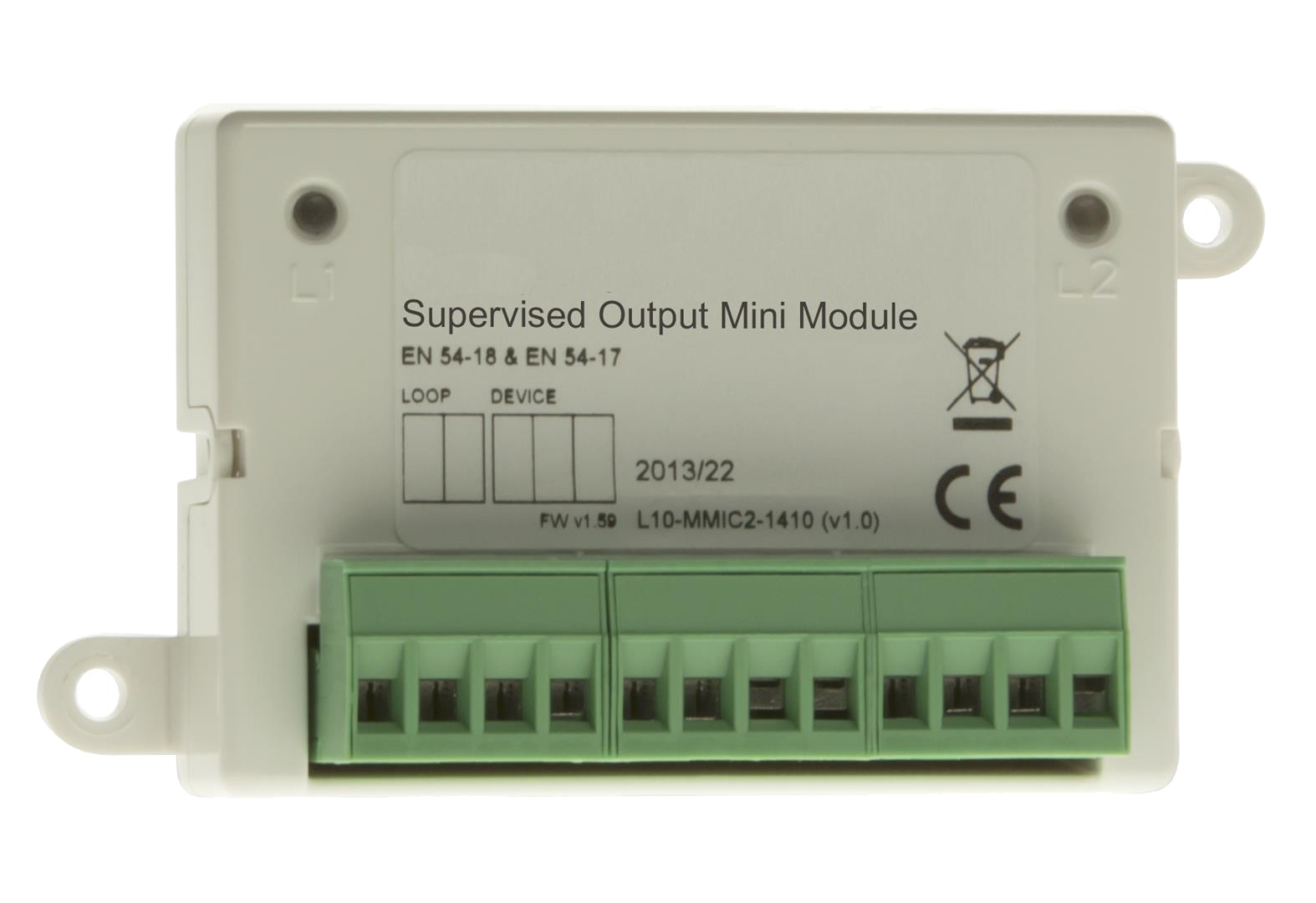

Eurotech Single Supervised Output Module Mini

Part Number 100-2045V Categories ,

Talk to our specialists

Description

The Eurotech module range provides an ideal solution to the monitoring and control requirements of most fire detection and alarm systems, ranging from small and simple, to large and complex.

Additional information

Key Features

• Designed to meet EN54-18 standards
• Provide a high reliability and error detection
• Short-circuit isolator in each device
• Large capacity, up to 240 devices per loop
• Addressable by a special tool
• Auto-addressing capability
• High power availability from loop (>98%)
• Digital checking of double address
• Line quality information
• Bi-colour (red/green) LED driven by control panel

Technical Specification

Power supply: 15 – 40 V
Average current consumption: l= 120 μA
LED current consumption: l= 6 mA @ 24 Vdc
Operating temperature range: -30 °C to +70 °C
Humidity (non condensing): 95% RH
Relay switch characteristics: l= 2A V= 30Vdc

100-8003V

Handheld Programming Unit

The handheld programming unit (100-8003V) allows you to set and read the programmable variables of the devices in your system, including the loop address.

100-2041V

EURV-WSR-IP65 Intelligent Wall Mounted Sounder

The 100-2401V Addressable waterproof wall sounder forms the core of our Alarm Device range. The unit is of a modular design.

100-2039V

EURV-SBR-IP65 Intelligent AV Wall Mounted Sounder Beacon

The EURV-SBR-IP65 Conventional Wall Sounder VAD forms the core of our EN54-23 modular visual alarm device (VAD) range.

100-2038V

Eurotech EURV-IO-RM Single Input & Single Relay Output

The Eurotech module range provides an ideal solution to the monitoring and control requirements of most fire detection and alarm systems, ranging from small and simple, to large and complex.
