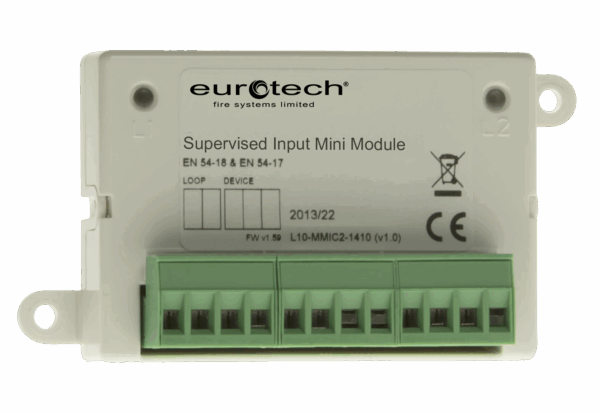

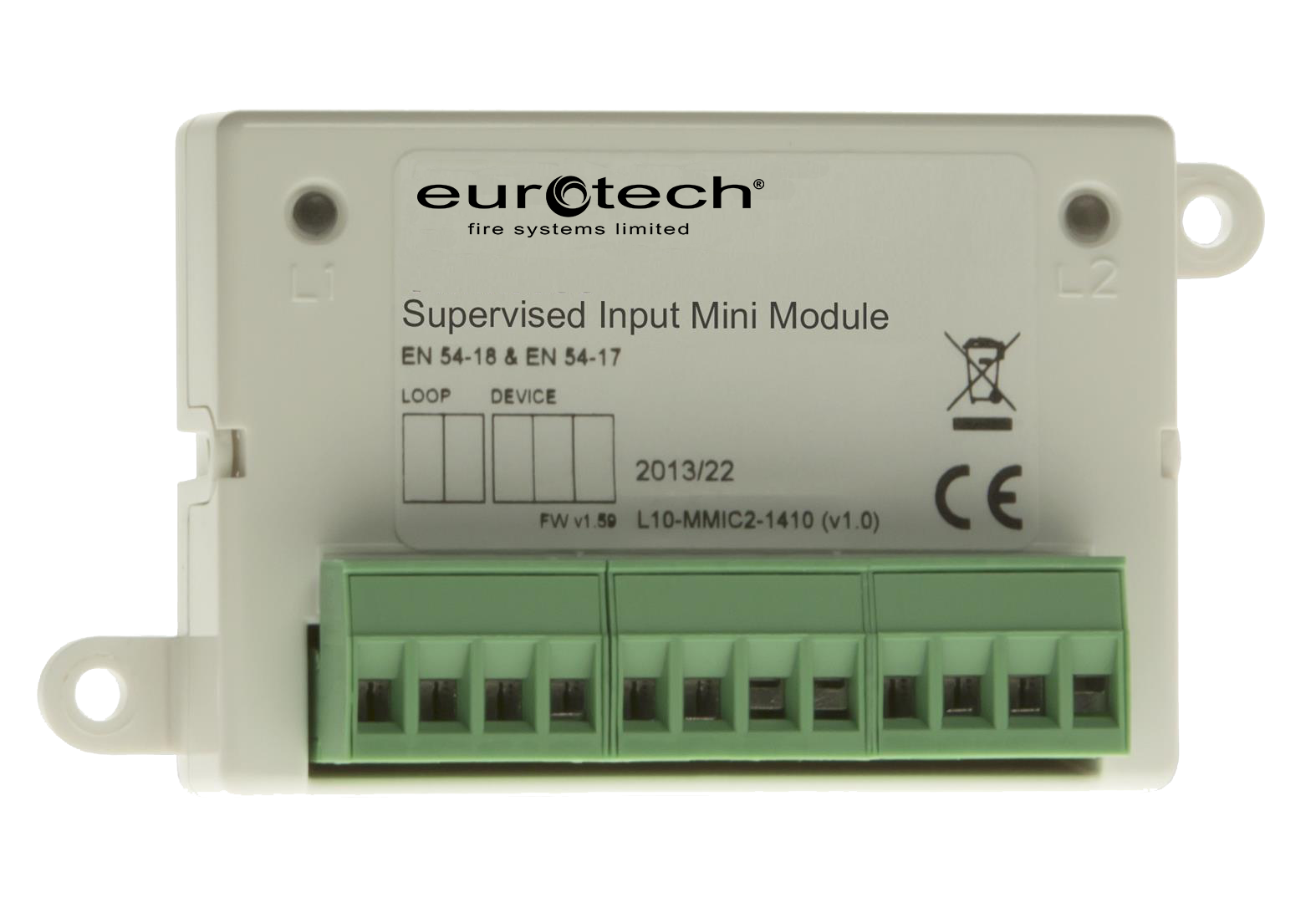

Eurotech Intelligent Input Module – Mini Mount

Part Number 100-2025V Categories ,

Talk to our specialists

Description

The Eurotech module range provides an ideal solution to the monitoring and control requirements of most fire detection and alarm systems, ranging from small and simple, to large and complex.

Additional information

Key Features

• Designed to meet EN54-18 standards
• Provide a high reliability and error detection
• Short-circuit isolator in each device
• Large capacity, up to 240 devices per loop
• Addressable by a special tool
• Auto-addressing capability
• High power availability from loop (>98%)
• Digital checking of double address
• Line quality information
• Bi-colour (red/green) LED driven by control panel

Technical Specification

Power supply: 15 – 40 V
Average current consumption: l= 120 μA
LED current consumption: l= 6 mA @ 24 Vdc
Operating temperature range: -30 °C to +70 °C
Humidity (non condensing): 95% RH
Relay switch characteristics: l= 2A V= 30Vdc

EVAC-SVAD

Euro-VAC Sounder VAD

The Euro-VAC Sounder VAD is a low profile EN54:3/23 32 tone sounder with bright VAD (wall and ceiling variants) incorporating many European and internationally recognised tones, high and low frequency tones as well as industry-standard frequency patterns.

EVAC-SND

Euro-VAC Sounder

The sounder is a low profile EN54:3 32 tone sounder incorporating many European and internationally recognised tones, high and low frequency tones as well as industry-standard frequency patterns.

OMN-REP

Omnis Repeater Panel

Networked Repeater for use with any Omnis control panel. The repeater’s compact styling makes it ideal for all small and medium site requirements.

OMN-V1002

Omnis 1-4 Loop Fire Control Panel – Odyssey Protocol

The Omnis 1-4 loop analogue addressable control panels have been developed to provide a simple to use and cost effective, robust solution for the intelligent fire systems market.
