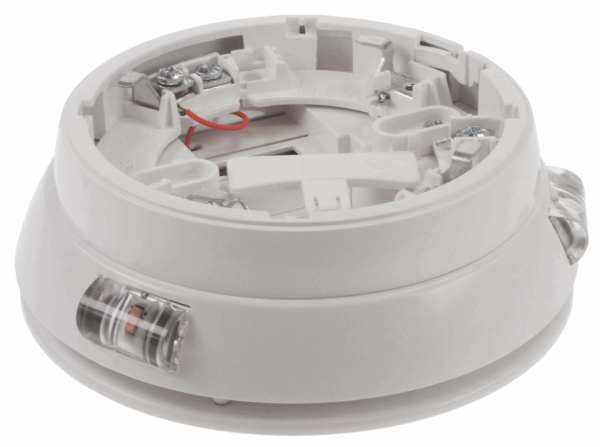

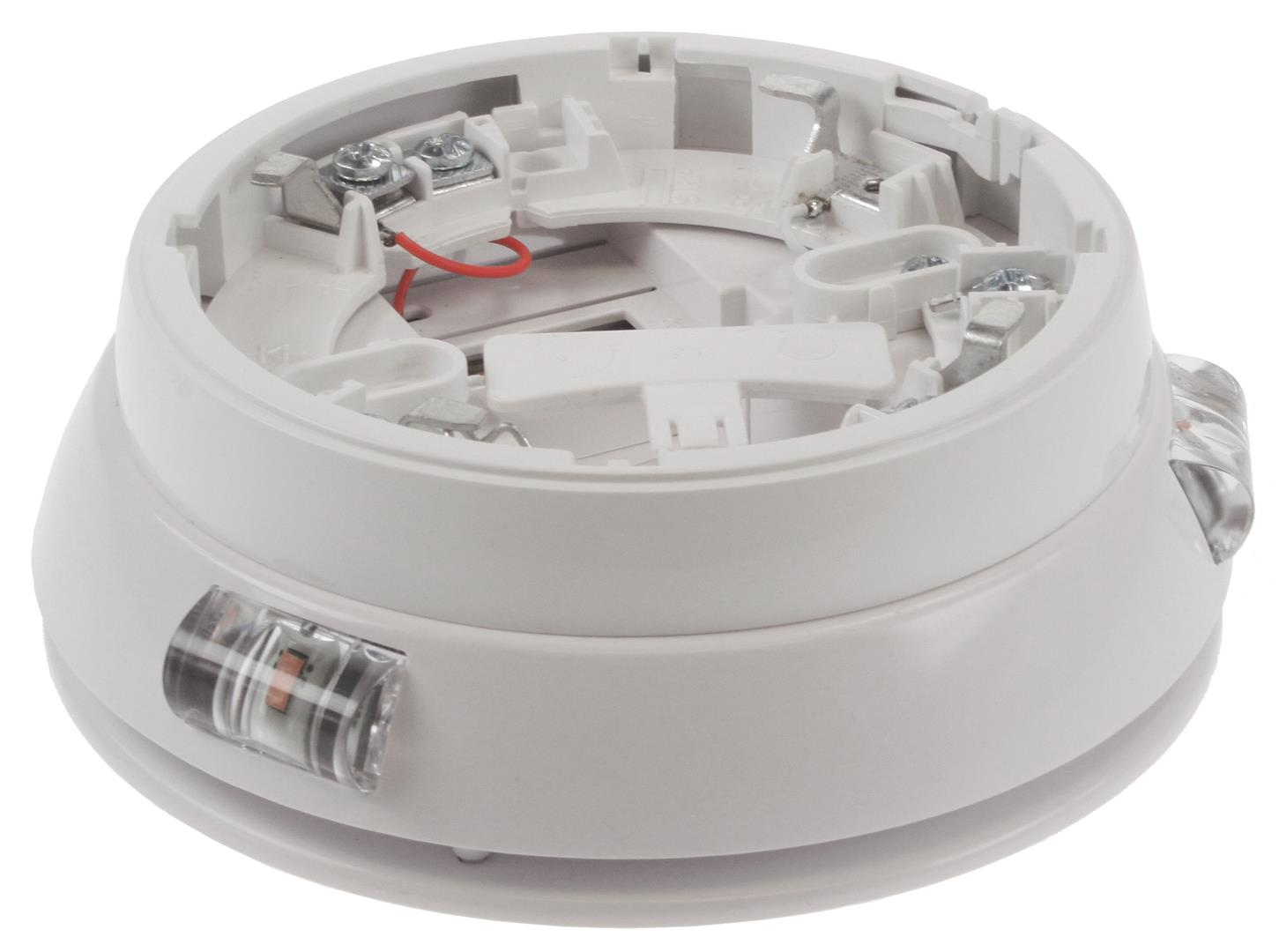

Eurotech Intelligent Base Sounder with White Visual Indicator

100-2018V Datasheet

Part Number 100-2018V Categories Eurotech Intelligent Devices, Intelligent Devices

Talk to our specialists

(0)203 141 0999

Description
Additional information

Description

The 100-2018V is an aesthetically pleasing low profile 32 tone audio/visual base sounder with combined white visual indicator, suitable for all devices in the Eurotech range of intelligent detectors.

Additional information

Key Features	• Employs fully digital Hyfire protocol • Built in loop isolators • Offers full programming options • Selection of 32 tones* • Synchronised sounder • 360 degree visibility of VID when activated • Adjustable volume output • Auto-addressable via compatible panels • Programmable via the Device Programming tool • 5 year product warranty • Includes device identification tab • Easy central cable entry *Refer to tone table for full listings and approved tones.
Technical Specification	Loop Voltage Range: 15 Vdc – 32 Vdc* Standby Current: 70 uA @ 24 Vdc Current Consumption: 5-9 mA @ 24 Vdc Max Volume: 94 dBA @ 1 metre Tone Range: 440 Hz – 2900 Hz Dimensions: 141.4 mm x 66 mm Weight: 220 g Temp Range (no icing): -10 C to +55 C Max Humidity (non condensing): 95% RH Max Loop Addresses: 240 * Min 18 Vd for operation of LED.

Key Features

• Employs fully digital Hyfire protocol
• Built in loop isolators
• Offers full programming options
• Selection of 32 tones*
• Synchronised sounder
• 360 degree visibility of VID when activated
• Adjustable volume output
• Auto-addressable via compatible panels
• Programmable via the Device Programming tool
• 5 year product warranty
• Includes device identification tab
• Easy central cable entry

*Refer to tone table for full listings and approved tones.

Technical Specification

Loop Voltage Range: 15 Vdc – 32 Vdc*
Standby Current: 70 uA @ 24 Vdc
Current Consumption: 5-9 mA @ 24 Vdc
Max Volume: 94 dBA @ 1 metre
Tone Range: 440 Hz – 2900 Hz
Dimensions: 141.4 mm x 66 mm
Weight: 220 g
Temp Range (no icing): -10 C to +55 C
Max Humidity (non condensing): 95% RH
Max Loop Addresses: 240

* Min 18 Vd for operation of LED.
