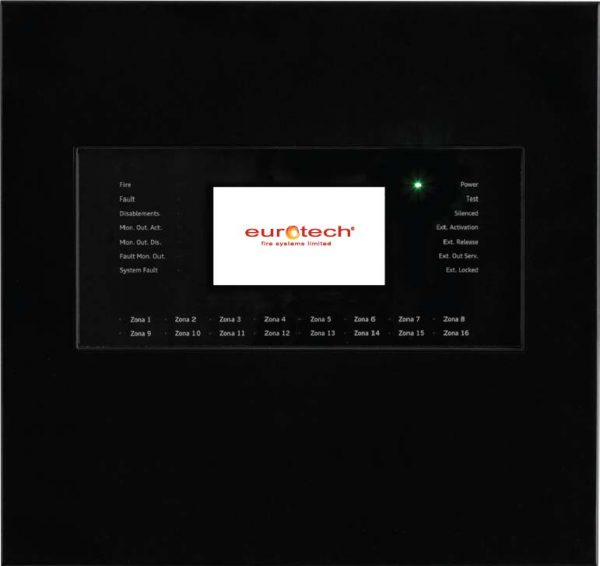

Toccare Lite Half Loop Intelligent Fire Alarm Control Panel

Part Number 700-100L Categories ,

Talk to our specialists

Description

The Toccare Lite Touch Screen Panel is the Toccare panel’s smaller brother. This fire alarm control panel comes in a smaller package, yet still delivers reliable usage for the end-user.

Additional information

Further Description

The panel offers a clean and even more minimal design than most fire alarm control panels. It can fit into any building and offers a great aesthetic which you will be proud to show off.

The Lite panel works well with a wired or wireless system and will work seamlessly with either. Offering efficient solutions and a new age in the fire safety industry.

Key Features

• 32 bit microprocessor addressable control panel
• 1 addressable loop with digital protocol
• Dedicated single loop
• 120 addressable devices per loop
• Graphic touch screen display (480 x 272 TFT 4 3”)
• 16 front LEDs
• 2 monitored outputs for siren or dialer (24Vdc 1 A)
• 2 fire relay
• 2 fault relay
• 1 open collector output
• 1 RS 485 line for repeater panel
• 1 RS 232/micro USB for programming or monitoring station
• Network management of group of fire panel (optional board)
• Ethernet 10Mb/s interface (optional board)
• Monitored power supply output 24Vdc 500mA with short circuit protection
• Dimensions: 315mm x 330mm x 82mm
• Power supply 230Vac

Click below to download

Toccare Brochure Cover

Scorpion ASD Head Unit

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

C-TEC CFP761 Network Driver Card

CFP Network Driver Card (CFP761)

  • An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
C-TEC XFP761 Network Driver Card

XFP Network Driver Card (XFP761)

  • An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
  • Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
