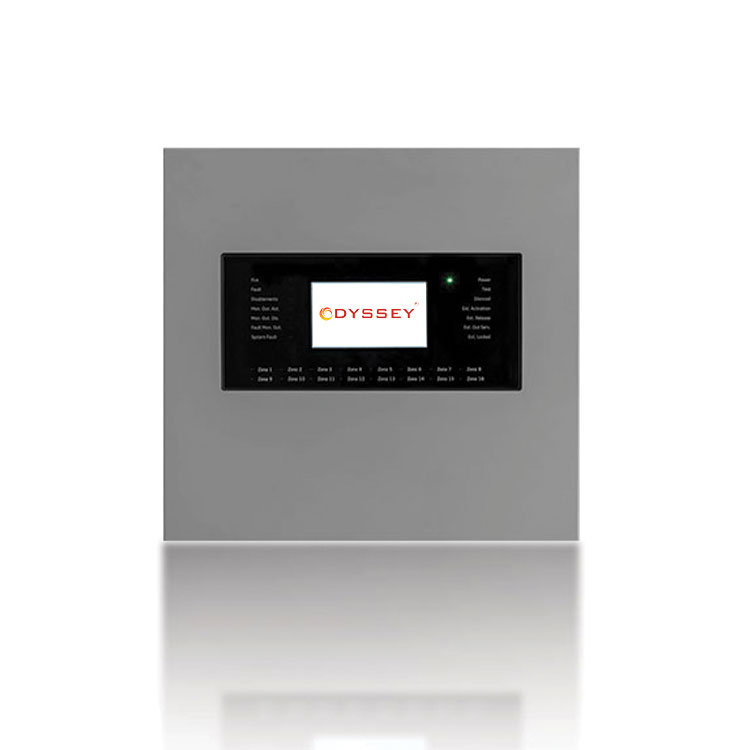

Odyssey Touch Intelligent Fire Panel

Part Number 500-100 Categories ,

Talk to our specialists

Description

A world first; fully touchscreen EN54  certified fire alarm panel



Why Customers Love This Panel:

Adaptive Design Clean, non-imposing appearance to fit seamlessly with the building’s interior design

Touchscreen A responsive touchscreen with an easy-to-use interface

End-User Access The end user can access details such as; events, alarms, faults and more, with the use of their own 5-digit code

Custom Lighting Fully customisable LED backlights to match seamlessly with the decor

Variety of Languages A vast number of characters and symbols, up to 11 languages



Why Engineers Love This Panel:

Brand Identity Your own company logo can be implemented into the fire panel

Engineer’s Dream Programming of the panel can be completed with as little as four touches

Expandability For easier management on a large scale fire system, up to 128 panels can be connected to a network loop

Detailed Information A touch of the device icon will show information such as % of dust in device. Maintenance schedule can also be planned within the panel

Operator Menu Simple operator menu designed for convenience, with two login access codes; one for the end-user and one for your engineers

Cloud Based Programming The panel can be programmed from a computer/laptop, and details can be viewed remotely – allowing for easier technical support

Additional information

Software Specification

• Touchscreen interface, powerful and easy-to-use
• Up to 240 addressable devices per loop
• Hybrid fire panel for wired or wireless detectors
• Up to 192 logic detection areas
• 96 logic functions
• More than 1000 events
• Auto-programming & addressing function of addressable devices
• Function for device mapping
• Network capability in order to build a huge system for size and number of devices
• Management of more than 100 languages
• Fully customisable with personal logo, colour, touch screen and coloured side LEDs
• Management of a wide range of addressable devices:
• Wired and wireless devices
• Thermal, optical detectors mixed
• Input modules
• Output modules
• Addressable button alarm
• Addressable siren
• Local and remote programming capability by dedicated software on serial or LAN / WAN
• Protocol MODBUS RTU over IP
• Product certified to EN54-2 and EN54-4
• CE marking (EMC directive low voltage

Ordering Codes

700-101 (B), Touchscreen 1-9 Loop Intelligent Panel (no LEDs)

700-100LED (B), Touschscreen Single Loop Intelligent Panel – c/w 56 LEDs fitted

700-300LED (B), Touschscreen 3 Loop Intelligent Panel – c/w 56 LEDs fitted

700-500LED (B), Touchscreen 5 Loop Intelligent Panel – c/w 56 LEDs fitted

700-700LED (B), Touchscreen 7 Loop Intelligent Panel – c/w 56 LEDs fitted

700-900LED (B), Touchscreen 9 Loop Intelligent Panel – c/w 56 LEDs fitted

Sygno-fi Black Expander Module

Sygno-fi Translator Module - Black

The SYG-W2W-B Sygno-fi Translator Module is the core component of the Sygno-fi intelligent hybrid fire detection and alarm system. When connected on to a compatible loop, the unit is capable of linking up to 128 fully intelligent wireless field devices with the fire alarm system. All wireless communications rely on a channel pair for spurious RF noise rejection and maximum link reliability.

The translator allows fully intelligent and seamless integration of the wireless devices alongside standard wired devices or can be used independently to for completely wireless systems. Using cutting-edge wireless technology and a proprietary orthogonal antenna design it ensures the highest levels of life safety and system reliability.

Sygno-fi Black Expander Module

Sygno-fi Expander Module - Black

The SYG-EM-B Sygno-fi Expander Module is compatible with all Sygno-fi wireless intelligent translators and the conventional expander.

The unit provides a convenient method to increase radio communication range beyond that possible from a single translator by relaying the radio communication to further expanders or directly to the wireless field devices, allowing to build large fully wireless systems or add wireless devices onto areas where cabling for translators is difficult or impossible.

The expanders are programmable for a redundant path to the translator, so that if any expander in the chain fails, the transmission path can find an alternate route. The redundant paths are identified and tested during system commissioning for maximum reliability. All the wireless communication relies on a channel pair for spurious RF noise rejections and maximum link reliability. All expanders are fully monitored ensuring that the highest levels of life safety are maintained.

Sygno-fi Black Base Sounder VAD

Sygno-fi Sounder VAD Base - Black (White Flash)

The SYG-BSB-23W-B Sygno-fi Sounder VAD base(white flash) is a high performance device, incorporating an EN54-23 compliant VAD used to alert people in the event of a fire.

Each unit has an integral moulded base for mounting an wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, as well as high power/low power visual settings, all of which can be easily configured on site.

Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Sygno-fi Sounder Base - Black

Sygno-fi Sounder Base - Black

The SYG-BS-B Sygno-fi Sounder Base unit is a high performance wireless sounder base that can be used as stand-alone notification device (with a blanking cap) or as a combined detection and alarm device when fitted with an integral Sygno-fi optical, heat or multi detector.

The SYG-BS-B unit has as standard 32+32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, all of which can be easily configured on site.

It is powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.
