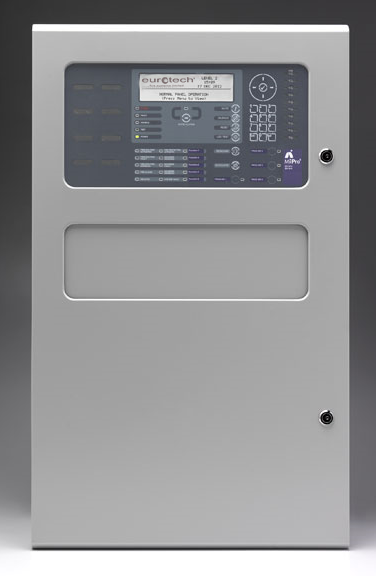

MxPro5 2 to 8 Loop Intelligent Fire Control Panel

Description

The MxPro5 2 to 8 loop intelligent fire control panel is fully expandable from 2 to 8 loops and supplied with 8 onboard sounder circuits, 20 programmable Zonal LEDs with slide-in labels, and 25 System LEDs for information purposes.

Additional information

Further Description	The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end-user operation. Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications from small to large complex multi-area systems. Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT configuration software.
PC Software	An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using MxPro5 series fire panels. The suite incorporates a number of different programmes which include configuration, service, logo and virtual panel tools to allow the flexibility of the equipment to be fully explored.
Network	Simply adding a network card allows the panel to communicate with any other MxPro5/MxPro4 fire panel, remote terminal, or network peripheral, such as ipGateway™, BMS or graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Features	• Fully expandable from 2 – 8 loops via plug-in loop driver boards • 20 programmable Zonal / 25 System LEDs with slide-in labels • Dedicated loop driver for Apollo or Hochiki protocol support • Advanced graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware • Dual flash-based microprocessor technology with real-time clock onboard • Dedicated USB & RS232 serial port for direct PC or modem connection • Installer friendly Auto-learn, Loop Detection and Onboard Scope facility for ease of commissioning and fault finding • Fully programmable via the onboard alphanumeric keypad, or PC configuration tools • The graphical display can be configured to operate with virtually any language or character set and allow the installer’s logo to be applied using the Logo application software • Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination • 2 x 5 Amp power supply and charger to En54 part 4 • Integral P-Bus for system expansion via available option cards • Ad-NeT peer-to-peer network with up to 2000 zones
