Addressable & Manual Call Points

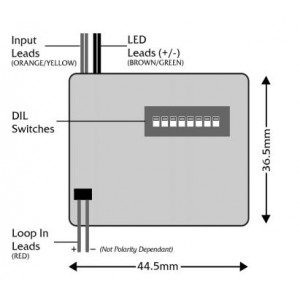

CHQ-CP2

Hochiki Addressable Call Point PCB

The CHQ-CP2 is a loop powered single input monitor unit designed to be used as a call point module for special applications such as addressable key-switches and explosion proof call points. The default device type allocated by the Fire Alarm Control Panel will be a call point.

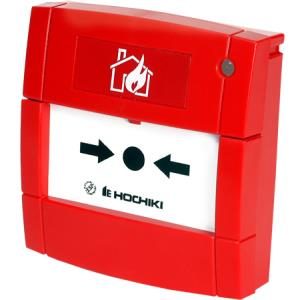

HCP-ESCI

Hochiki Addressable Call Point with SCI (Red)

The Hochiki HCP-E is a Manual Break Glass Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The Hochiki HCP-E incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the HCP-E is operated. The unit is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly.

The device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing and the unit can also be flush mounted if required. An optional glass element is also available.



Key Features:

  • Fast response
  • Integral short-circuit isolator
  • Bi-coloured status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B100 Hand Held Programmer
  • Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
  • Different colour options available
  • LPCB Approved to EN54

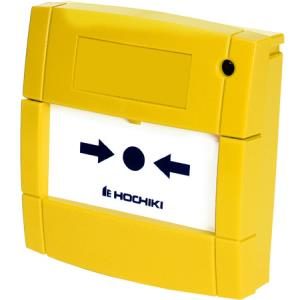

HCP-E-YSCI

Hochiki Addressable Call Point with SCI (Yellow)

Model HCP-E/Y is a Manual Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The HCP-E/Y incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-E/Y is operated.

The unit is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly.  A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing.  The unit can be flush mounted as supplied.  For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately).



Key Features:

  • Fast response
  • Status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B100 Hand Held Programmer
  • Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
  • LPCB Approved to EN54

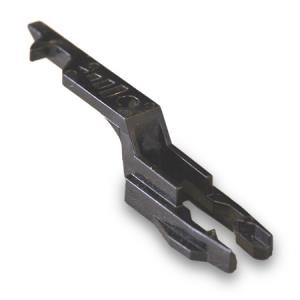

HCP-CALL-POINT-KEY

Hochiki Call Point Key - HCP (10pcs)

Call Point Key – HCP (10pcs)

Smoke alarm

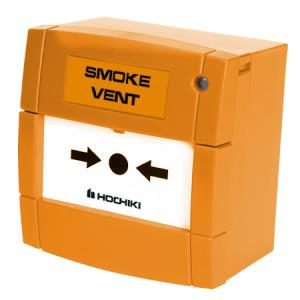

Hochiki Manual Call Point with SCI "SMOKE VENT" (Orange)

The HCP-EO(SCI) is an Analogue Addressable orange call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals. The call point features the words “SMOKE VENT”.



Key Features:

  • Terminals can accommodate up to a 2.5 mm solid conductor
  • Orange casing
  • Features an integral SCI
  • Approved by LPCB to EN54-11:2001
Fire alarm sound

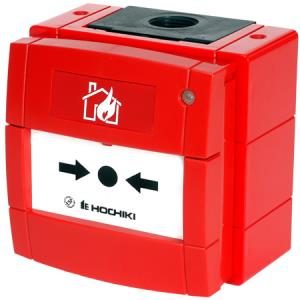

Hochiki Weatherproof Addressable Call Point with SCI IP67

Model HCP-W(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-W(SCI) is operated – in these two states the LED will show red.

The LED will show amber when a short-circuit is present but will switch to red if the unit is activated.  The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt.  A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.



Key Features:

  • Fast response
  • Integral short-circuit isolator
  • Bi-coloured status LED
  • Non-frangible element fitted as standard (conforms to EN54)
  • Addressed with TCH-B100 Hand Held Programmer
  • Surface mounted
  • IP67 rated
  • LPCB approved to EN54

Please Note: the unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing.  An optional glass element is also available.

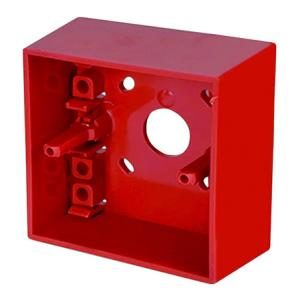

SR-MOUNTING-BOX

Hochiki Surface Mounting Call Point Back Box (Red)

A surface mounted back box for the HCP-E(SCI) manual call point which is 32 mm deep.



Key Features

  • Durable
  • For use with HCP-E call point range
  • Allows addressable call point to be surface mounted



Ordering codes: SR BACKBOX
For use with: HCP-E range
Dimensions: 86 mm (W) x 86 mm (H) x 32mm
Colour / Case Material: Red / ABS

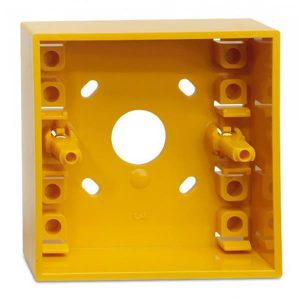

SY Mounting Box

Hochiki Surface Mounting Call Point Box (Yellow)

A surface mounted back box for the HCP-Y(SCI) yellow manual call point which is 32mm deep.



Key Features

  • For surface mounting of the HCP call points
  • Yellow colour
  • 32 mm deep
  • 86 mm square
