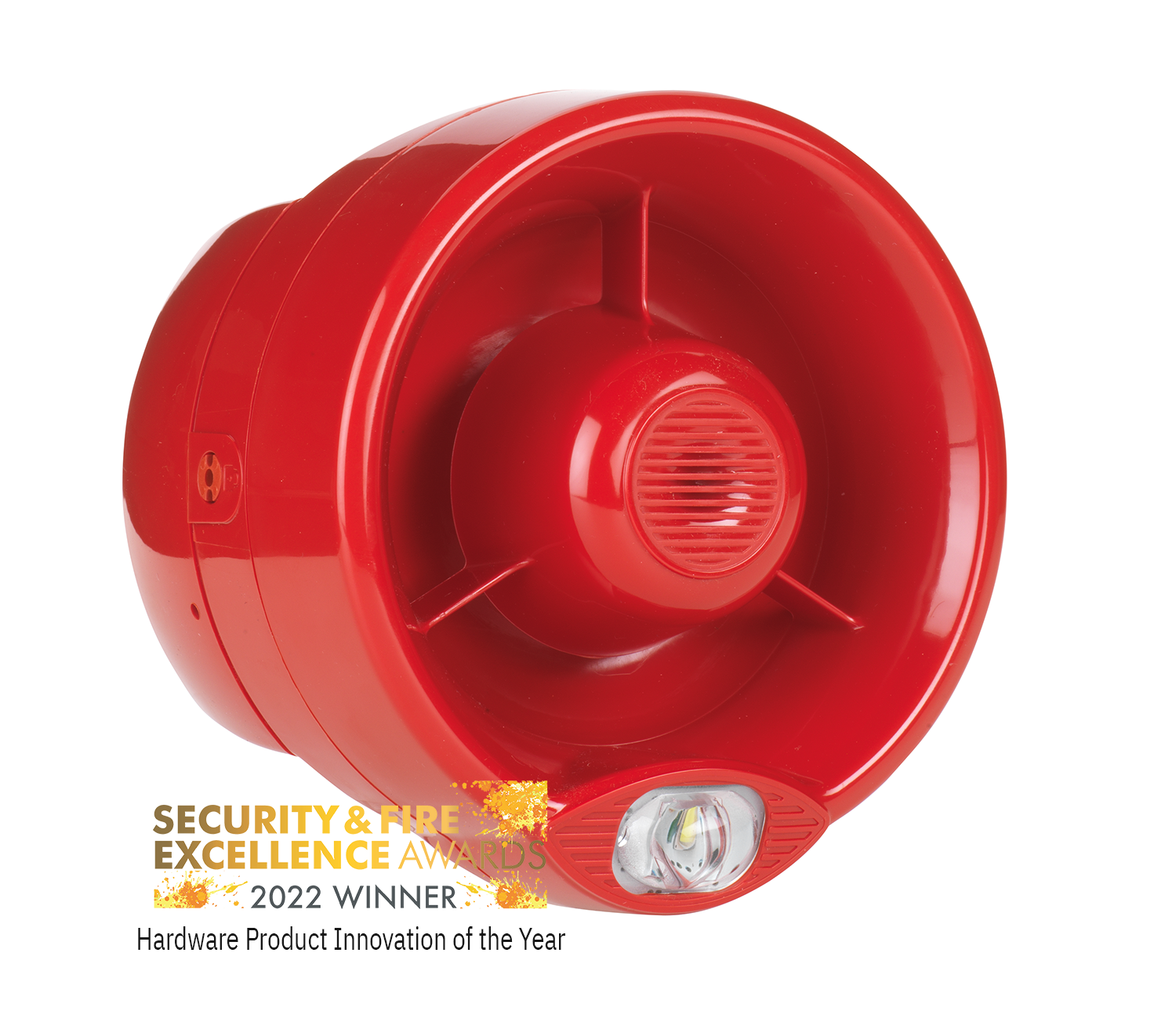

Sygno-fi Sounder VAD – Wall Mounted

Part Number SYG-SBR -

Talk to our specialists

Description

The Wall Mounted Sygno-fi Sounder VAD combines the Sygno-fi SYG-SIM Wall Sounder Module with the 100-3800V Conventional Wall Sounder VAD (each sold separately).

Additional information

Further Description

The Sygno-fi Wall Sounder VAD is a EN 54-3 (Type B) and EN 54-23 compliant visual/alarm device, equipped with 3 levels of volume adjustment, high output LED beacon, and 32 recognised tones which can be set via the control equipment or locally at the sounder.

The wireless wall sounder VAD, once properly connected to a wireless system on a compatible loop, is fully controlled by the panel and benefits from an extensive range of intelligent control, test and monitoring functionality, including sounder synchronisation. Adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Key Features

• Bi-directional wireless communication
• 32 tones settings (primary and secondary for alertand evacuation), selectable via onboard dip switches
• On site adjustable volume settings
• Silent sounders setting for beacon only use
• Waterproof certified to IPX5
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 5 year expected battery life including weekly test
• Utilises standard low cost lithium battery technology
• Easy scan & link programming option
• 3rd party approval to EN54-3 (type B) and EN54-23
• Red and white body colours available
• 5 year product warranty.

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

Scorpion ASD Head Unit

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

C-TEC CFP761 Network Driver Card

CFP Network Driver Card (CFP761)

  • An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
C-TEC XFP761 Network Driver Card

XFP Network Driver Card (XFP761)

  • An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
  • Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
