Sygno-fi Sounder VAD Base (White Flash)

Part Number SYG-BSB-23W -

Talk to our specialists

Description

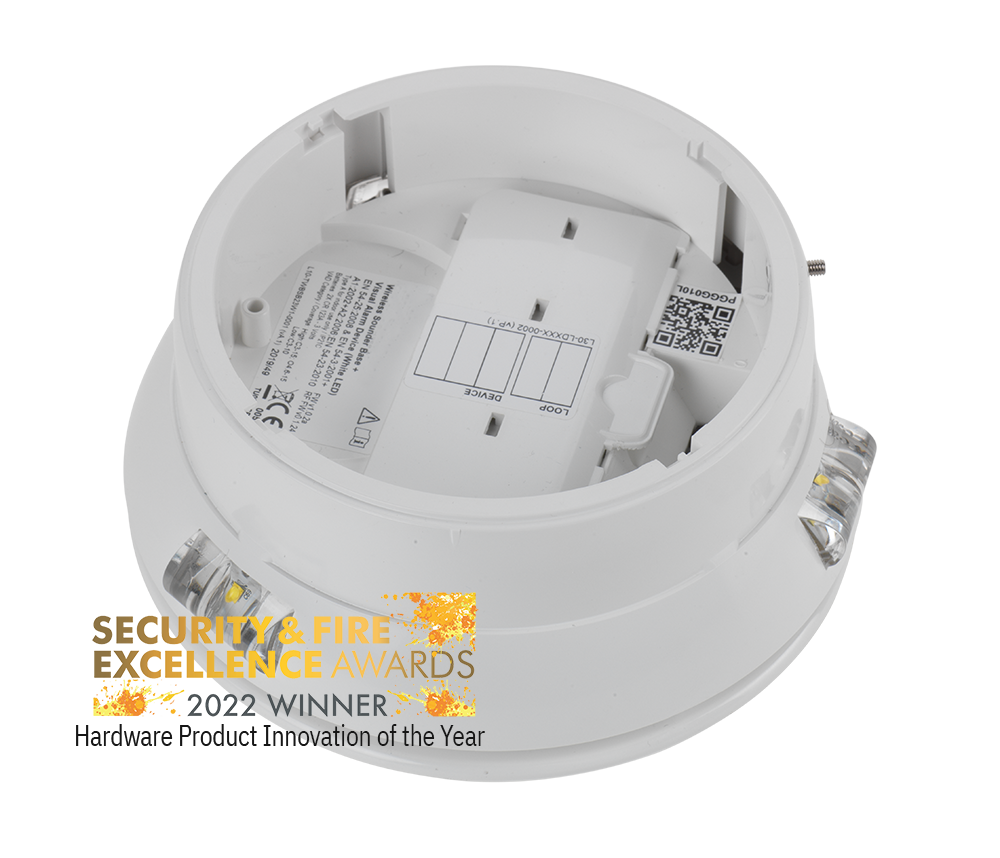

The SYG-BSB-23W Sygno-fi Sounder VAD base (white flash) is a high performance device, incorporating an EN54-23 compliant VAD used to alert people in the event of a fire.

Additional information

Further Description

Each unit has an integral moulded base for mounting an wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, as well as high power/low power visual settings, all of which can be easily configured on site.

Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Key Features

• Only compatible with Sygno-fi detectors
• 32 tones settings (primary and secondary for alert and evacuation), selectable via onboard dip switches
• 4 volume levels
• Bi-directional wireless communication
• Can be used with Sygno-fi addressable and conventional translators
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 5 year battery life (including 10 seconds weekly test)
• Utilises standard low-cost lithium battery technology
• Device identification tab
• Easy scan & link programming option
• Security screw to prevent tampering and unwanted removal
• 3rd party approval to EN54-3 and EN54-25
• Red and white blanking cap options
• 5 year product warranty

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

Cavius CV4002

Cavius CO Alarm (CV4002)

Carbon monoxide alarm device.
Designed for installation in private homes, camping trailers, mobile homes and caravans.
The alarm will make a CO sensor reading every 30 seconds if the concentration is less than 200ppm. At 200ppm or higher the readings will be made every 10 seconds.

Cavius CV3202

Cavius RF Mains Powered Heat Alarm (CV3202)

Mains powered thermal heat alarm device with wireless interlink and battery back-up.
Designed for installation in private homes or garages with risk for smoky, dusty or humid environment, as for example kitchen and garage area. This alarm can be connected with other alarms from the CAVIUS Wireless alarm family or function as a stand-alone alarm.
Placed max 5,3 meters away from any heating source.

Cavius CV9001

Cavius Smart Remote (CV9001)

Smart remote with emergency light.
Designed to alert with a rapid flashing warning light, vibration and buzzing when alarming and to remote control the CAVIUS Wireless alarms Family. Torch function to find escape routes at night.

Cavius CV3106

Cavius RF Heat Alarm (CV3106)

Thermal heat alarm device with wireless interlink.
Designed for installation in private homes or garages with risk for smoky, dusty or humid environment, as for example kitchen and garage area.
This alarm can be connected with other alarms from the CAVIUS Wireless alarm family or function as a stand-alone alarm.
