Sygno-fi Sounder VAD Base (Red Flash)

Part Number SYG-BSB-23R -

Talk to our specialists

Description

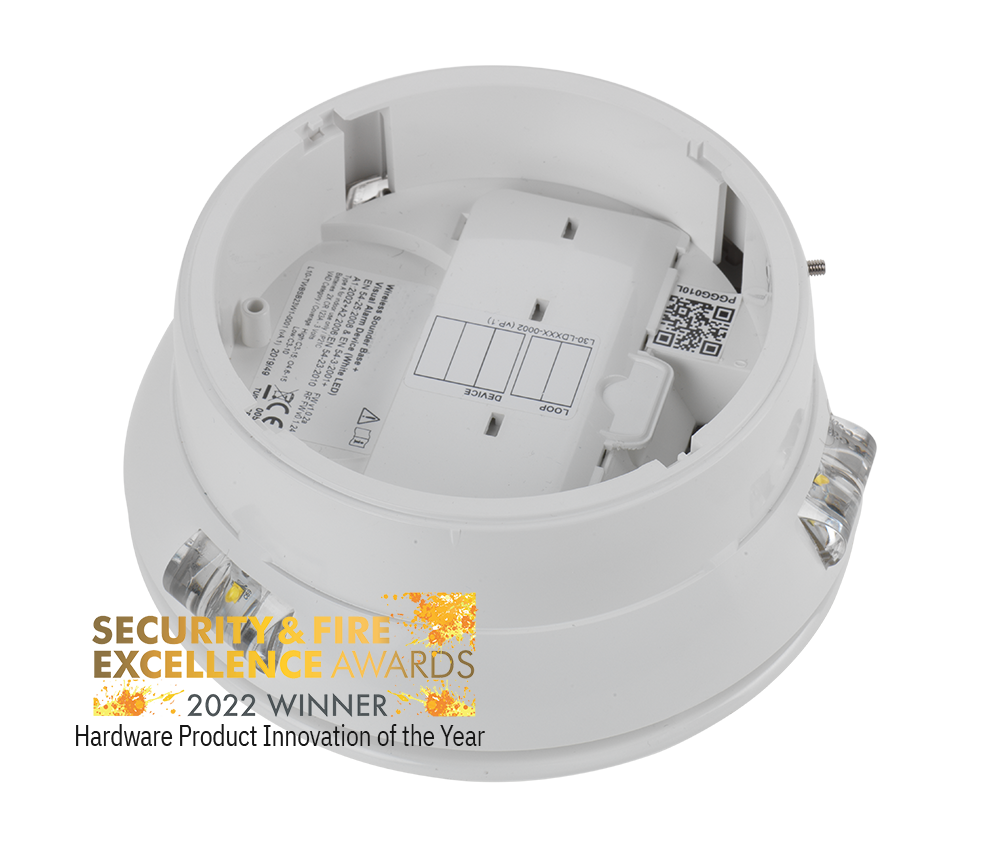

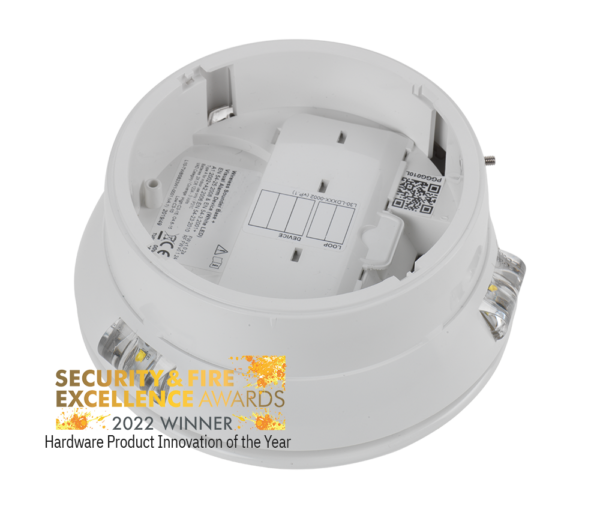

The SYG-BSB-23R Sygno-fi Sounder VAD base (red flash) is a high performance device, incorporating an EN54-23 compliant VAD used to alert people in the event of a fire.

Additional information

Further Description

Each unit has an integral moulded base for mounting an wireless detector or a sounder cover if a detector is not required. The unit has as standard 32 recognised sounder tones (primary and secondary) and 4 levels of volume adjustment, as well as high power/low power visual settings, all of which can be easily configured on site.

Powered by standard lithium batteries and utilising well proven adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.

Key Features

• Only compatible with Sygno-fi detectors
• 32 tones settings (primary and secondary for alert and evacuation), selectable via onboard dip switches
• 4 volume levels
• Bi-directional wireless communication
• Can be used with Sygno-fi addressable and conventional translators
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 5 year battery life (including 10 seconds weekly test)
• Utilises standard low-cost lithium battery technology
• Device identification tab
• Easy scan & link programming option
• Security screw to prevent tampering and unwanted removal
• 3rd party approval to EN54-3 and EN54-25
• Red and white blanking cap options
• 5 year product warranty

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

100-2039V

EURV-SBR-IP65 Intelligent AV Wall Mounted Sounder Beacon

Available in red (100-2039V) or white (100-2039VW). The unit has a built in microphone which allows the unit to indicate a fault should the sounder not operate when activated or tested.

EVAC-RES-ISO

Dual Residential Isolator Module

The dual residential isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

EVAC-FLR-ISO

Single Floor Isolator Module

The single floor isolator module is designed to provide short circuit isolation features for Euro-VAC loops carrying Eurotech devices. It operates with Euro-VAC control panel protocol which provides for high rates of information exchange in combination with particular features that ensure fast and secure responses.

100-2034V

EURV-OM-RM Single Relay Output Mini Module

The single output module (100-2034V) is loop-powered, designed around a fully digital protocol and provides a fast and secure response. The output channel is monitored and detects open and short circuit conditions. Connections are made using plug-in terminal blocks.
