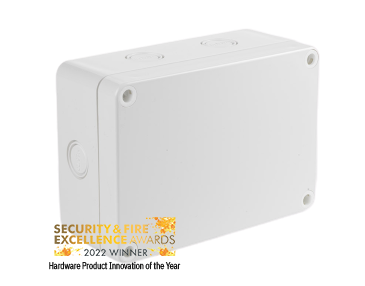

Sygno-fi Output Module

Part Number SYG-OM -

Talk to our specialists

Description

The SYG-OM Sygno-fi Output Module has been designed to allow easy control of a variety of third party equipment including access control doors, ventilation plant and fire extinguishing systems.

Additional information

Further Description

The unit is powered entirely from its internal battery supply and is fitted as standard with both a set of change over relay contacts and a 12/24V dc output.

The output is capable of supplying power for operating low current third party equipment directly from the internal batteries.

Key Features

• Bi-directional wireless communication
• Output circuits are fully supervised for alarm and fault conditions
(utilizing EOL resistors)
• Can be used with Sygno-fi addressable and conventional translators
• Change over relay and 12/24V output functionality
• On site programmable
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 5 year expected battery life (application dependent)
• Utilises dual low cost lithium battery
• Easy scan & link programming option
• 3rd party approval to EN54-18 and EN54-25
• 5 year product warranty
