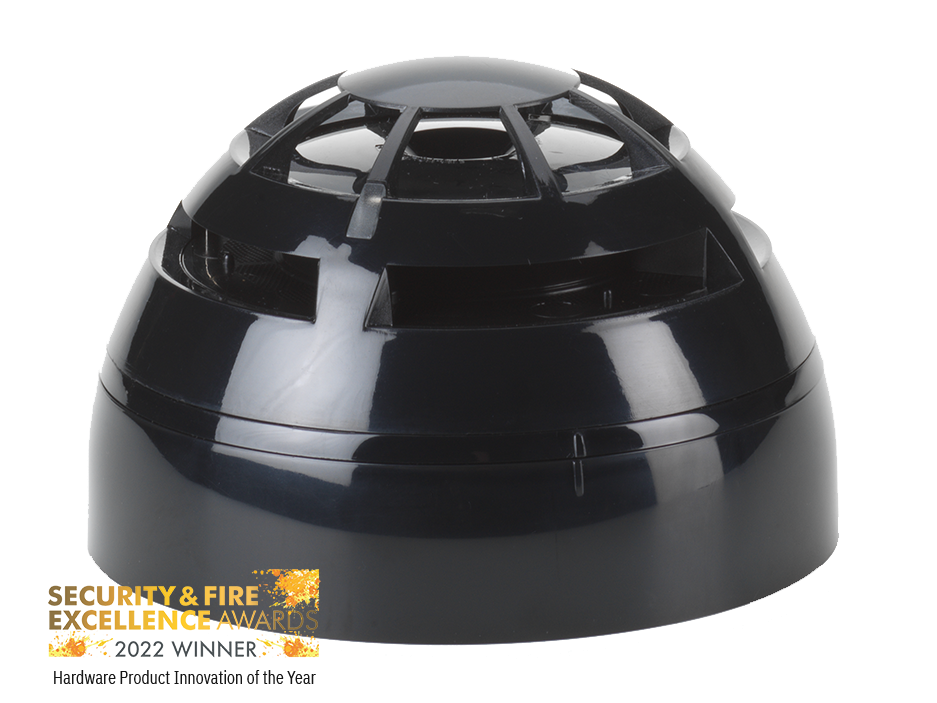

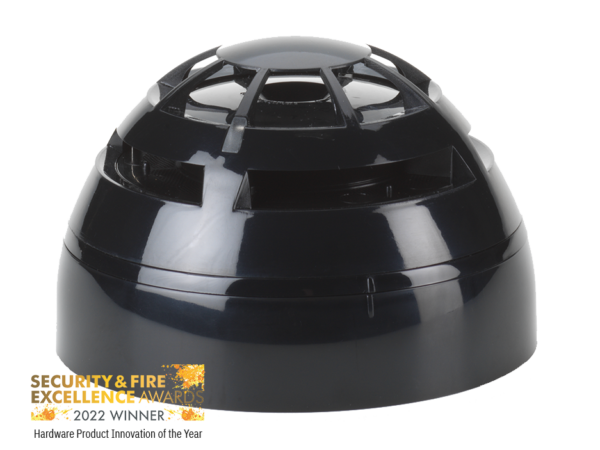

Sygno-fi Optical Detector – Black

Part Number SYG-PA-B -

Talk to our specialists

Description

The SYG-PA-B Sygno-fi Optical Detector is the latest in wireless smoke detector technology.

Additional information

Further Description

The detector utilises dual optical smoke detection technologies and algorithms for improved performance, maintaining the highest levels of false alarm rejection.

Utilising well-proven adaptive radio signal processing algorithms it ensures the highest levels of life safety and system reliability are achieved. In-built magnet test allows easy activation to verify correct functionality and response.

This device is supplied with a standard base and is compatible with the following sounder bases:
SYG-BS-B, SYG-BSB-23W-B

Key Features

• Advanced dual optical chamber design
• Dual angle scattering analysis
• Advanced drift compensation
• Bi-directional wireless communication
• Can be used with Sygno-fi addressable and conventional
translators
• 22 pairs of field channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• 10 year battery life
• Utilises standard low-cost lithium battery technology
• Device identification tab
• Fast test feature for engineer testing
• Easy scan & link programming option
• Security screw to prevent tampering and unwanted removal
• 3rd party approved
• 5 year product warranty
• Tri-coloured LED

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

Scorpion ASD Head Unit

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

C-TEC CFP761 Network Driver Card

CFP Network Driver Card (CFP761)

  • An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
C-TEC XFP761 Network Driver Card

XFP Network Driver Card (XFP761)

  • An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
  • Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
