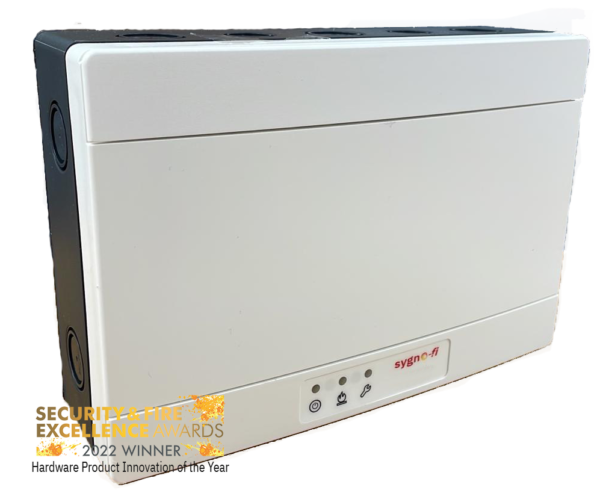

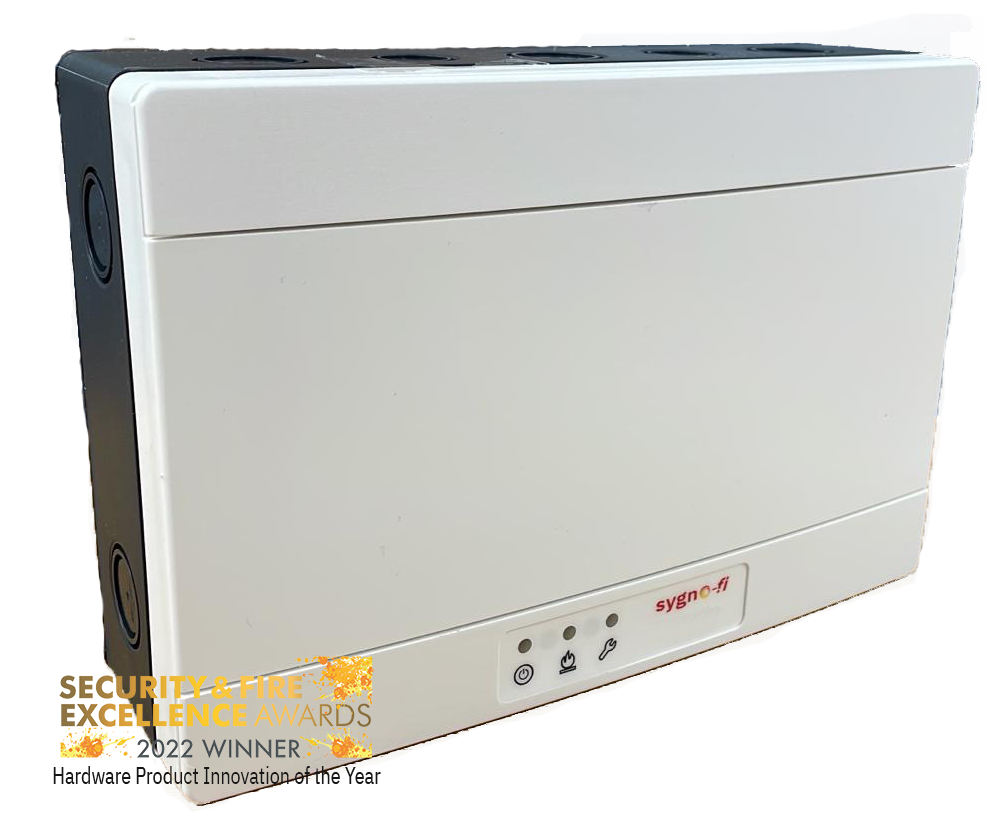

Sygno-fi Conventional Expander Module

Part Number SYG-CEM -

Talk to our specialists

Description

The SYG-CEM Sygno-fi Conventional Expander Module has been designed to allow the integration of wireless detection and alarm type field devices onto almost any type of system.

Additional information

Further Description

Regardless of whether the system is intelligent or conventional the unit can be simply connected to a conventional zone and sounder circuit, directly or via loop modules. The wireless field devices connect to the system as non-addressable devices, but still utilise the same technology as Sygno-fi intelligent wireless devices. They are fully monitored for alarm and fault, ensuring the highest levels of life safety and reliability are maintained. All wireless communications rely on a channel pair for spurious RF noise rejections and maximum link reliability.

Key Features

• Bi-directional wireless communication
• External PSU powered
• Internal antennae design protects from environmental conditions, vandalism, accidental damage or misuse
• Low current consumption
• Devices are fully monitored for alarm and fault
• Compatible with up to 15 expander modules (8 hops)
• Compatible with wide range of conventional and addressable systems
• Site programmable via internal keypad, or via wireless or wired PC connection
• 8 pairs of network channels
• Dual channel redundancy
• Long communication range (≅ 1 km in open air)
• Easy scan & link programming option
• 3rd party approval to EN54-18 and EN54-25
• 5 year product warranty

Download the Sygno-fi Digital Brochure below:

Sygno-fi Digital Brochure - 2022

Scorpion ASD Head Unit

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

C-TEC CFP761 Network Driver Card

CFP Network Driver Card (CFP761)

  • An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
  • Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).
C-TEC XFP761 Network Driver Card

XFP Network Driver Card (XFP761)

  • An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
  • Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
