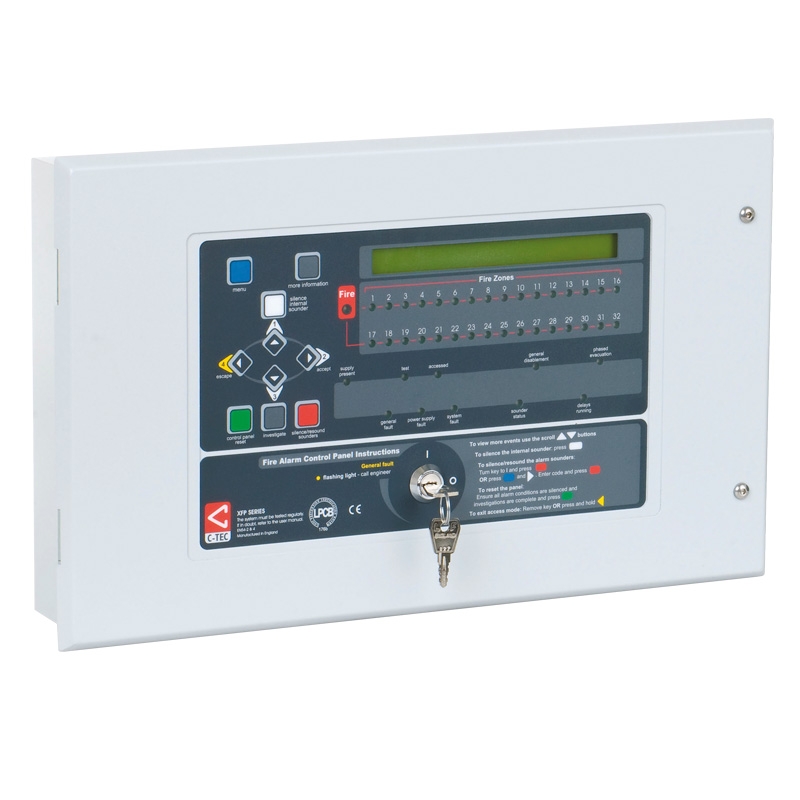

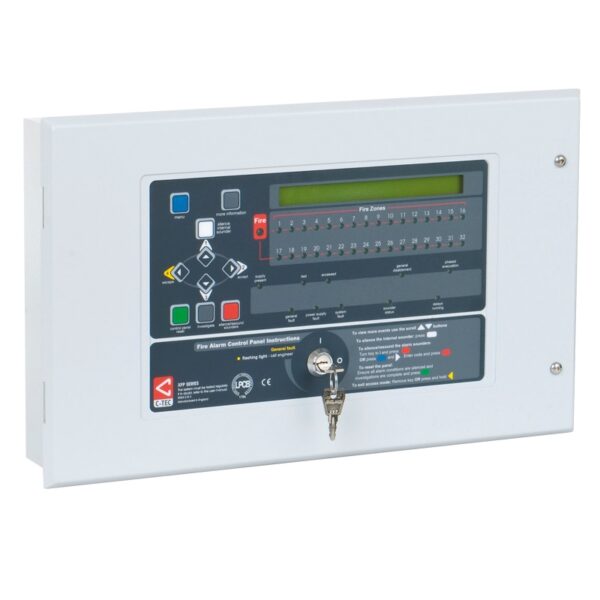

C-TEC XFP510-32 XFP 32 Zone Repeater Panel

XFP 32 Zone Repeater Panel – All Protocols (XFP510-32)

XFP510-32 Datasheet

Part Number XFP510-32 - C-Tec Intelligent Panels

Talk to our specialists

(0)203 141 0999

Description
Additional information

Description

Can be used to repeat the functions of an XFP Main panel at remote parts of a site (e.g. all potential fire service entrances).
Offers all of the functions and controls of an XFP Main panel (access levels 1, 2 and 3).
Includes an on-board fault relay.
Requires its own dedicated Mains power and battery back-up supply.

Additional information

Additional Information	• A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel. • Communication between the XFP Main panel and Repeater requires an AFP711 network driver card (fitted as standard in all XFP510-32s, available as an optional extra on Main XFP 32 Zone panels). • Repeater network is non-redundant and wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres.

Additional Information

• A maximum of eight XFP Repeaters can be connected to one non-networked XFP Main panel.
• Communication between the XFP Main panel and Repeater requires an AFP711 network driver card (fitted as standard in all XFP510-32s, available as an optional extra on Main XFP 32 Zone panels).
• Repeater network is non-redundant and wired in 1.5 mm2 two-core screened fire resistant cable. Network length must not exceed 500 metres.

Scorpion ASD Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is an aspirating smoke detection
(ASD) system or a point detector.
A Scorpion head unit is a smoke generator that is installed next to a detector, and when required, generates smoke that is directed toward the detector for a functional test of the device.

Scorpion Point Head Unit

Scorpion is an innovative solution for functionally testing any hard-to-access smoke detector, whether that is a point detector or aspirating smoke detection
(ASD) system.
A Scorpion head unit is a smoke generator which is installed next to a detector, and when required, generates smoke which is directed towards the detector for a functional test of the device.

CFP Network Driver Card (CFP761)

An optional system expansion device for use with CFP Standard and CFP AlarmSense conventional fire panels.
Allows the connection of up to eight CFP760 Repeaters (one CFP761 required per Main, all CFP760 repeaters include a CFP761 as standard).

XFP Network Driver Card (XFP761)

An optional system expansion device for use with C-TEC’s XFP Single Loop 16 Zone addressable fire panels.
Allows the connection of up to eight XFP Repeaters or eight XFP Main panels (any mix).
