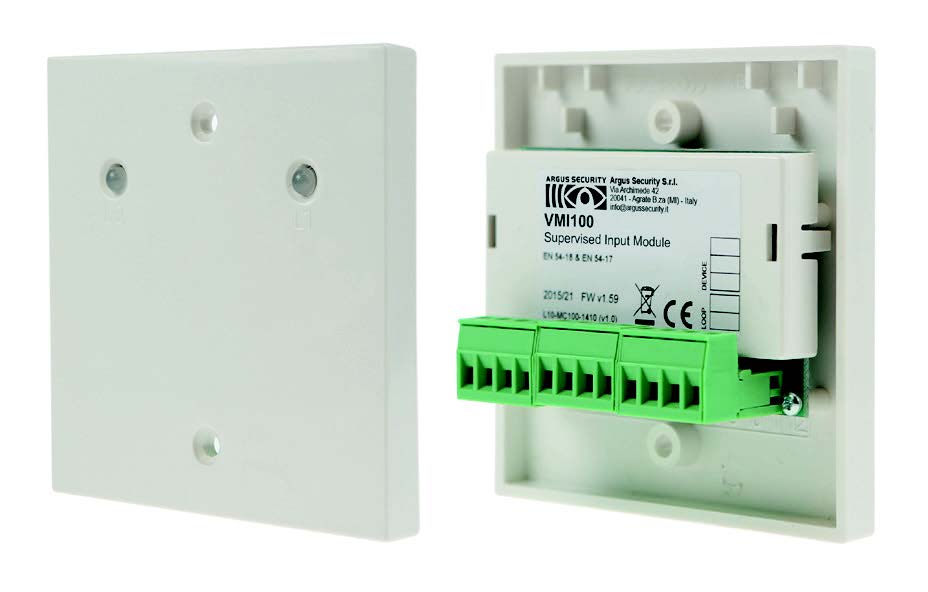

Eurotech Supervised Input Module

Part Number 100-2027V Categories ,

Talk to our specialists

Description

The Eurotech module range provides an ideal solution to the monitoring and control requirements of most fire detection and alarm systems, ranging from small and simple, to large and complex.

Additional information

Key Features

• Designed to meet EN54-18 standards
• Provide a high reliability and error detection
• Short-circuit isolator in each device
• Large capacity, up to 240 devices per loop
• Addressable by a special tool
• Auto-addressing capability
• High power availability from loop (>98%)
• Digital checking of double address
• Line quality information
• Bi-colour (red/green) LED driven by control panel

Technical Specification

Power supply: 15 – 40 V
Average current consumption: l= 120 μA
LED current consumption: l= 6 mA @ 24 Vdc
Operating temperature range: -30 °C to +70 °C
Humidity (non condensing): 95% RH
Relay switch characteristics: l= 2A V= 30Vdc
